The ICD-1211-165 is a heavy-load plastic pallet for the printing industry, distributed by ICD Vietnam. It measures 1200 x 1100 x 150/165 mm, with a 1,500 kg dynamic load and a 4,000 kg static load, blow-molded in one piece from virgin HDPE (PP on request). Designed to replace wooden pallets in print plants, it protects paper and printed semi-finished goods and resists shock, slipping and moisture. Two-year warranty.
1. Product Specifications
| Specification | Details |
|---|---|
| Product code | ICD-1211-165 |
| Original code | XF1211-165 |
| Dimensions (mm) | 1200 x 1100 x 150 |
| Dynamic load (kg) | 1500 |
| Static load (kg) | 4000 |
| Material | virgin HDPE/PP |
| Structure type | Blow-molded (one-piece) |
| Warranty | 2 years |
2. Applications & Key Advantages
- Receiving and moving base paper delivered by suppliers on plastic pallets
- Holding paper after cutting before it is fed to the press
- Storing cut and printed paper, wrapped in film and kept in stock
- Continuous feeding, with grooved trays engaging the loading rail for uninterrupted press operation
- Unloading printed paper for transfer to downstream finishing
- Print plants replacing wooden pallets to avoid dust and scratching of paper
- Racking storage at up to 1,000 kg when the pallet rests on selective rack beams
- Stack and floor storage supported by the 4,000 kg static rating
- Export shipping, with no fumigation needed and exemption from ISPM-15
Browse the full Printing Industry Plastic Pallets range from ICD Vietnam.

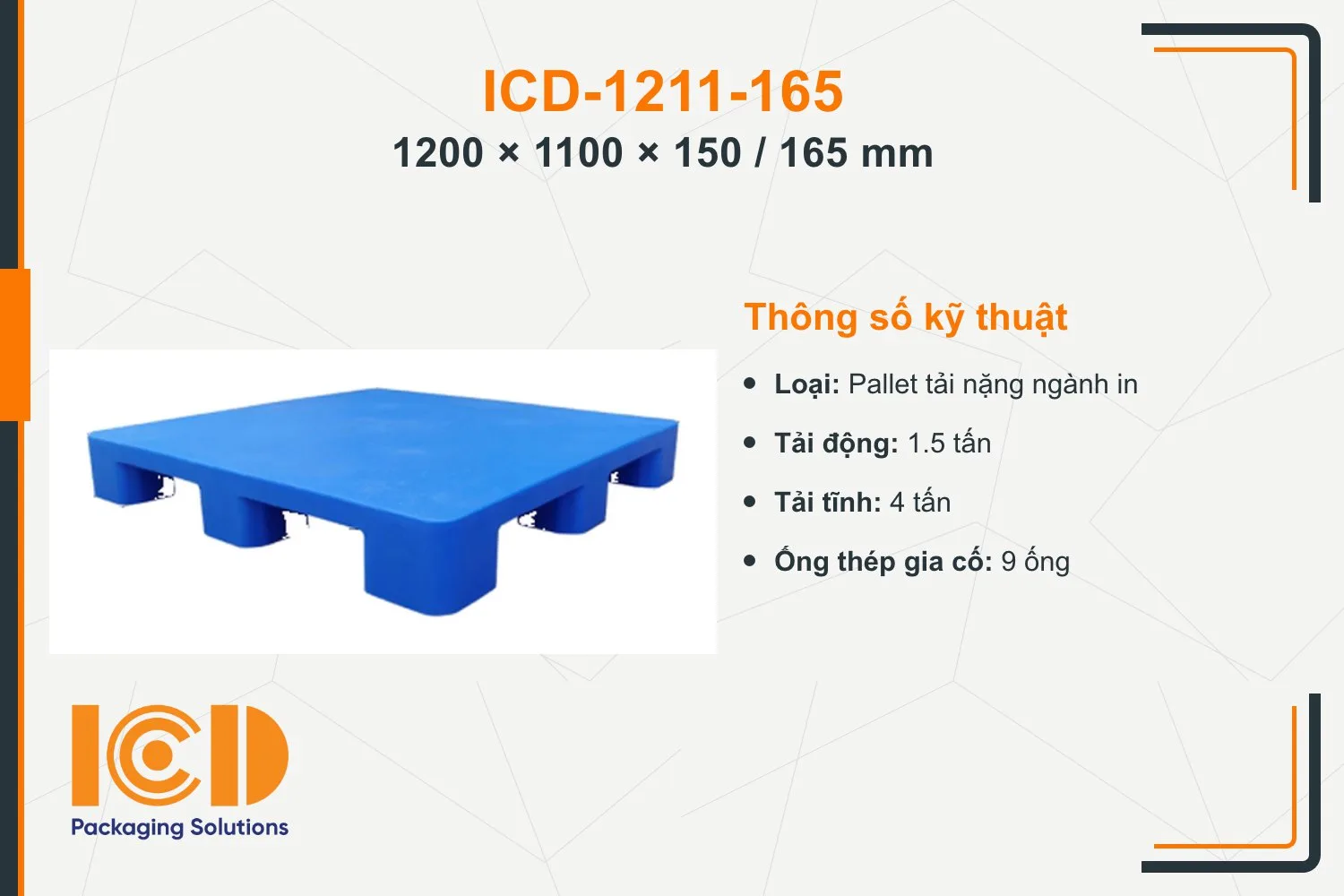

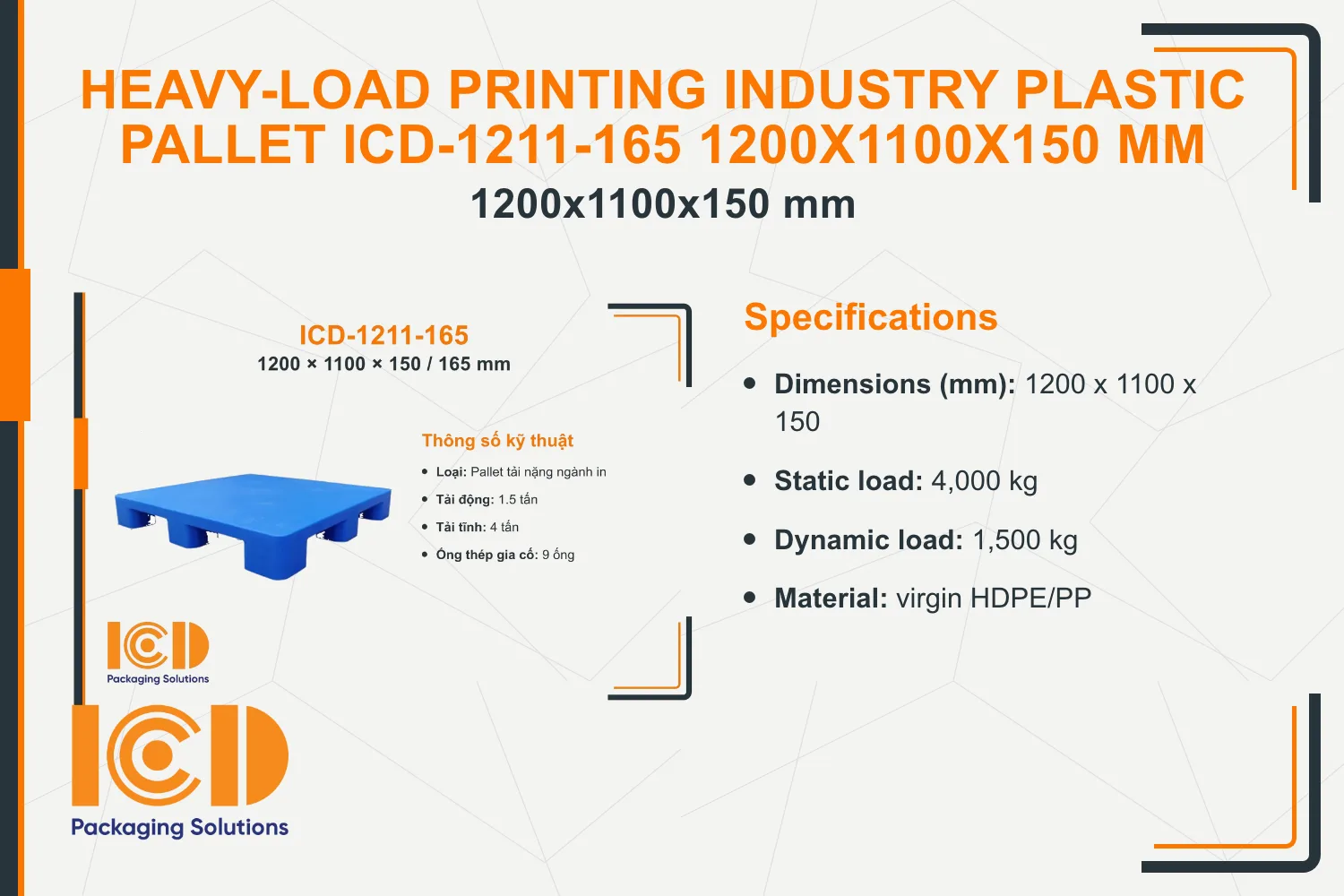

3. Product Images
4. Frequently Asked Questions
What are the dimensions and load ratings of the ICD-1211-165?
It measures 1200 x 1100 x 150/165 mm, with a dynamic load of 1,500 kg and a static load of 4,000 kg. The original code is XF1211-165.
Is the ICD-1211-165 reinforced?
Yes, the deck includes reinforcing steel tubes to raise its load capacity, and the base carries an anti-slip pad for stability during lifting.
How do I read the three load figures correctly?
Static load (4,000 kg) is for a pallet fixed on a flat floor and stacked. Dynamic load (1,500 kg) is while a forklift moves it. Racking load (1,000 kg) is the safe weight when it sits on rack beams. Always select by the racking figure if you store on racks.
Why choose this pallet over wood for printing?
It does not create dust, will not scratch or damage paper, is easy to clean and recyclable, and is exempt from ISPM-15 for export.
What warranty and delivery apply?
It comes with a two-year manufacturer warranty, is delivered nationwide and is stocked in both northern and southern warehouses.
