The Xilin ICD-SDJA1000-I is a 1,000 kg adjustable-fork high-lift hand stacker that uses hydraulics to raise loads up to 2,500 mm. Distributed exclusively by ICD Vietnam and imported as a complete unit from the Ningbo Ruyi group (Japanese quality standards), it carries a 2-year manufacturer warranty. The adjustable fork spread suits a wide range of pallets and goods.
1. Product Specifications
| Specification | Details |
|---|---|
| Load Capacity | 1000kg |
| Max Lift Height | 2500 mm |
| Certification | CE, ISO 9001 |
| Brand | Xilin (Ningbo Ruyi Joint Stock) |
| Origin | China (Ningbo Ruyi) |
| Warranty | 2 years - ICD Vietnam authorized distributor |
| Fork Dimensions (T/W/L) | 60/142/1070 mm |
| Overall Width | 955 mm |
| Machine Weight | 322 Kg |
2. Applications & Key Advantages
- Lifting pallets up to 1 tonne in small and medium industrial warehouses
- Logistics warehouses moving consumer goods, food and pharmaceutical pallets from trucks into storage
- Manufacturing plants transferring material pallets between production lines
- Supermarkets and retail stores stocking shelves and moving large quantities of cartons
- Transport companies loading and unloading containers and trucks at ports and depots
- Mechanical workshops moving steel blanks, small machinery and heavy parts
- Operations handling varied pallet sizes thanks to the 0-720 mm adjustable fork spread
Browse the full High-Lift Hand Pallet Trucks range from ICD Vietnam.

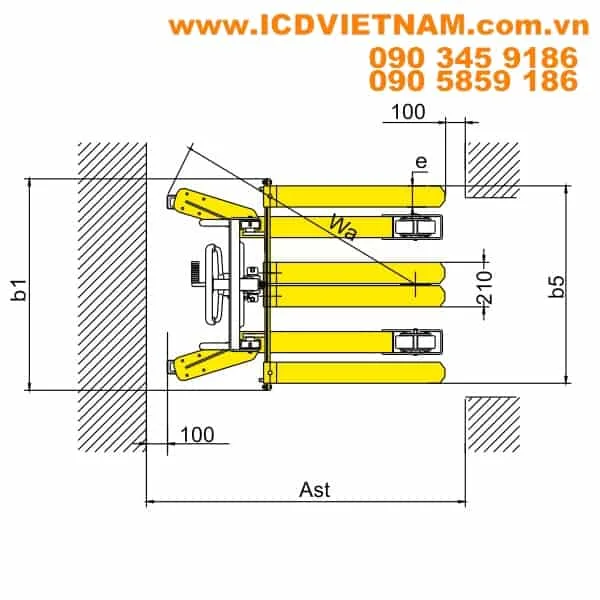

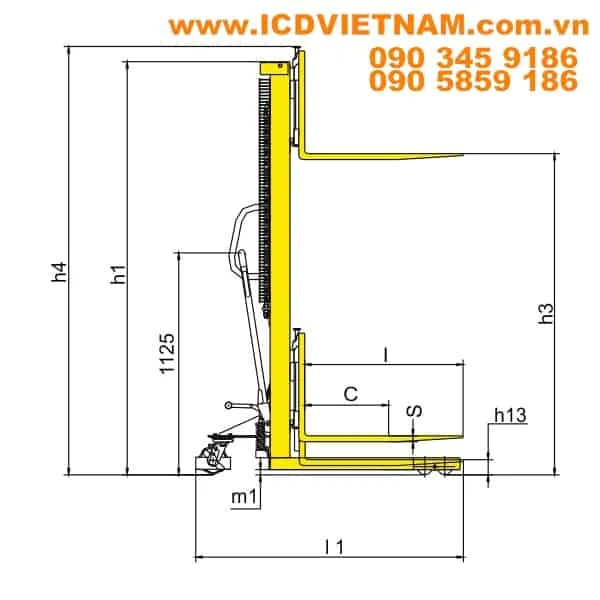

3. Product Images
4. Frequently Asked Questions
What is the maximum lift height?
It lifts loads up to 2,500 mm from the original position.
What is the load capacity?
1,000 kg, which covers most pallet-lifting needs in small and medium warehouses.
Are the forks adjustable?
Yes. The fork spread adjusts from 0 to 720 mm to suit all pallet types and various goods.
How is the unit operated?
Insert the forks under the load, raise it with the hydraulic hand pump, move the stacker, lower the load and withdraw the forks. Both foot and hand lift functions reduce operator effort.
What safety features does it have?
A metal mesh guards the operator from the lifting chain, and a wheel-protection and brake system supports safe operation.
