The Xilin ICD SDJ1000 / SDJ1500 are fixed-fork high-lift hand stackers from ICD that use hydraulics to raise loads up to 3,000 mm depending on model. Imported as complete units from the Ningbo Ruyi group (Japanese quality standards) and distributed exclusively by ICD Vietnam, they carry a 2-year manufacturer warranty. The welded fixed forks provide a cost-effective lifting solution.
1. Product Specifications
| Specification | Details |
|---|---|
| Load Capacity | 1000kg |
| Max Lift Height | 1600 mm |
| Certification | CE, ISO 9001 |
| Brand | Xilin (Ningbo Ruyi Joint Stock) |
| Origin | China (Ningbo Ruyi) |
| Warranty | 2 years - ICD Vietnam authorized distributor |
| Fork Dimensions (T/W/L) | 30/100/1150 mm |
| Overall Width | 1000 mm |
| Machine Weight | 250 Kg |
2. Applications & Key Advantages
- Lifting and moving loads up to 1,000 kg (SDJ1000) or up to 1,500 kg (SDJ1500)
- Warehouses needing a compact stacker suited to 550/580 mm x 1100/1150 mm pallets
- Operations requiring high lifting up to 3 m
- Sites seeking a low-cost solution with welded fixed forks
- Manual handling using both foot and hand lift functions
- Workplaces prioritising safety with a metal mesh guarding the lifting chain
- General warehouse and storage handling with wheel-protection and brake systems
Browse the full High-Lift Hand Pallet Trucks range from ICD Vietnam.

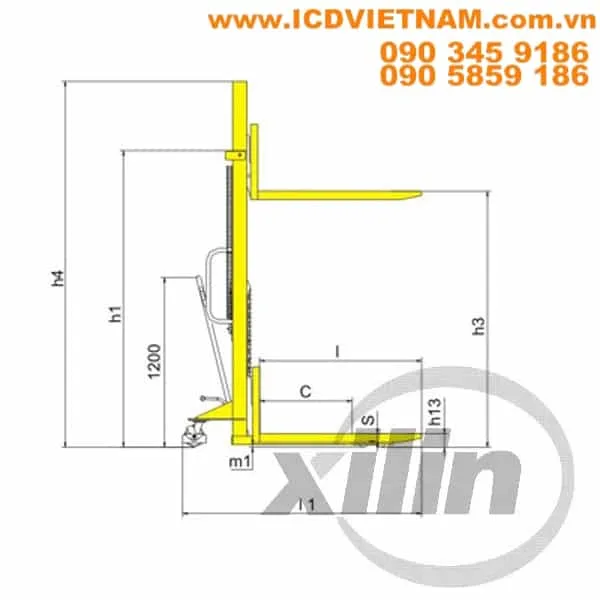

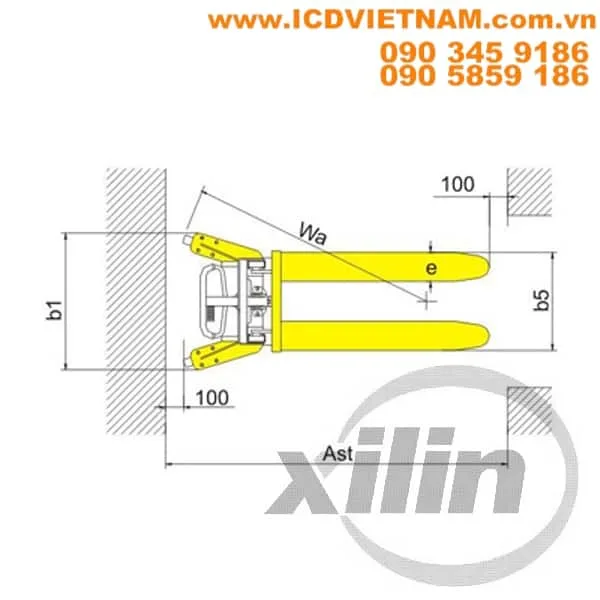

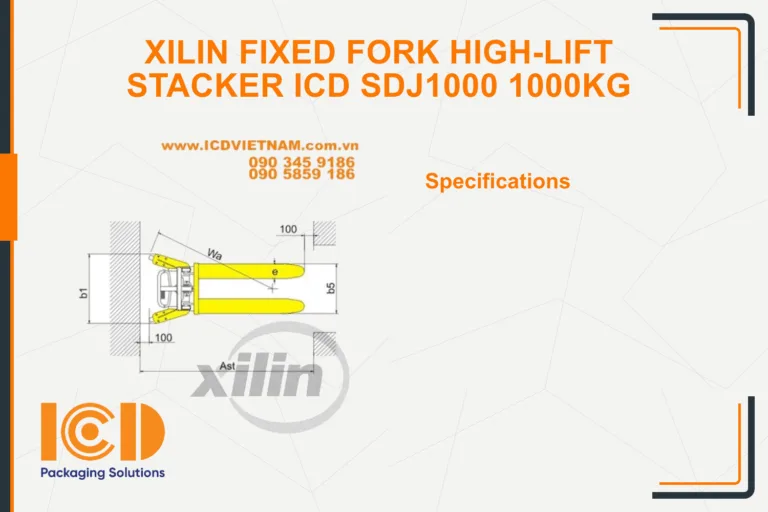

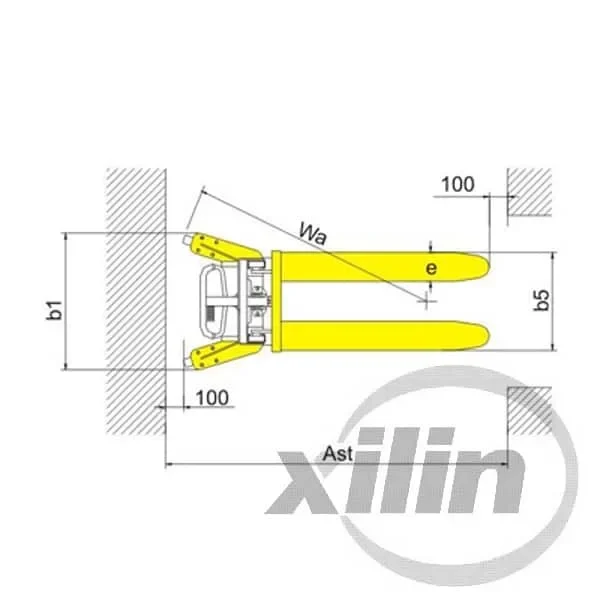

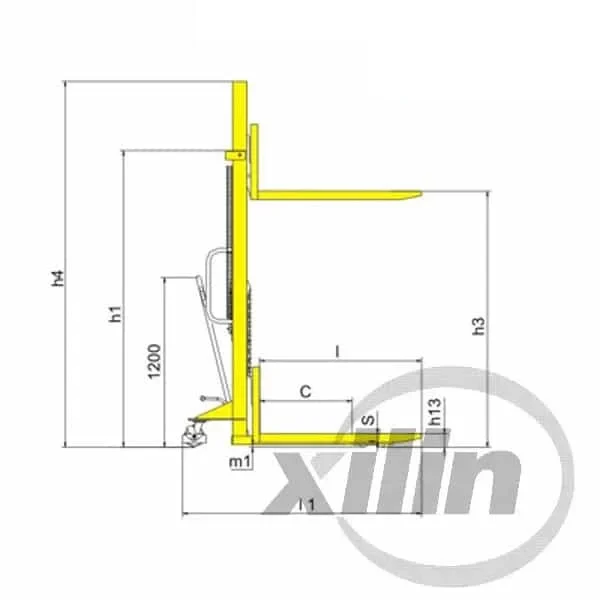

3. Product Images
4. Frequently Asked Questions
What are the available models and capacities?
The SDJ1000-I and SDJ1000-II are rated at 1,000 kg, and the SDJ1500 at 1,500 kg.
What lift heights are available?
The SDJ1000-I and SDJ1500 lift to 1,600 mm, while the SDJ1000-II lifts to 2,500 mm, with up to 3 m possible depending on configuration.
What pallets does it suit?
Its compact design suits pallets of 550/580 mm x 1100/1150 mm.
Why choose fixed welded forks?
Welded fixed forks provide a lower-cost lifting solution compared with adjustable designs.
How is the stacker operated?
Insert the forks under the load, raise it with the hydraulic hand pump, move the stacker, lower the load and withdraw the forks.
