The Xilin ICD-CQDH18C (single scissor) is a 1,800 kg electric single-scissor stacker that lifts up to 3,500 mm. Imported as a complete unit from the Ningbo Ruyi group (Japanese quality standards) and distributed exclusively by ICD Vietnam, it carries a 2-year manufacturer warranty. The compact body and small turning radius let it work in tight aisles similar to a manual stacker.

1. Product Specifications

Specification Details
Load Capacity 1800kg
Max Lift Height 3500 mm
Certification CE, ISO 9001
Brand Xilin (Ningbo Ruyi Joint Stock)
Origin China (Ningbo Ruyi)
Warranty 2 years - ICD Vietnam authorized distributor
Fork Dimensions (T/W/L) 40/100/1070 mm
Overall Width 600 mm
Battery 36 V / 700 Ah
Travel Speed 6.5/7 Km/h
Machine Weight 3360 Kg

2. Applications & Key Advantages

  • Lifting and moving loads up to 1,800 kg
  • Large warehouses and supermarkets transporting goods over medium distances
  • High-lift work up to 3,500 mm depending on configuration
  • Narrow-aisle warehouses needing a small turning radius
  • Operations preferring a GEL battery with an integrated charger
  • Facilities valuing a low centre of gravity for improved stability
  • Continuous logistics handling with easily replaceable motor and brake components

Browse the full Electric Forklifts range from ICD Vietnam.

3. Product Images

Xilin Electric Single-Scissor Stacker ICD CQDH18C 1800kg - product photo 1

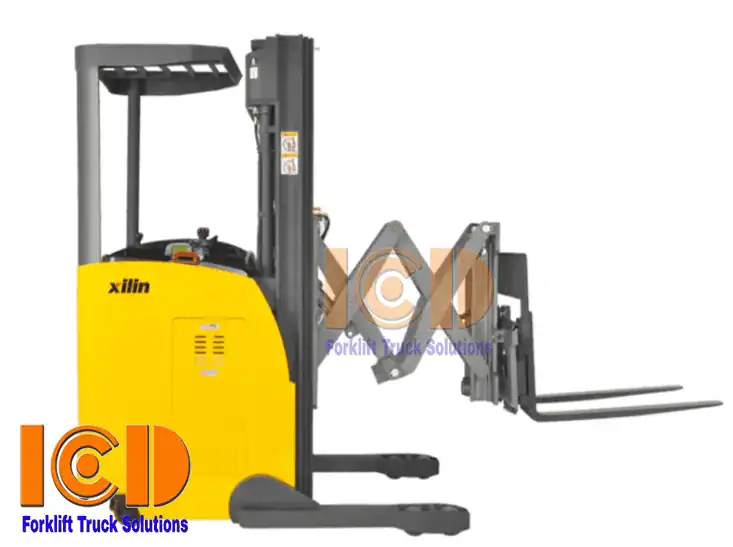

Xilin Electric Single-Scissor Stacker ICD CQDH18C 1800kg - product photo 2

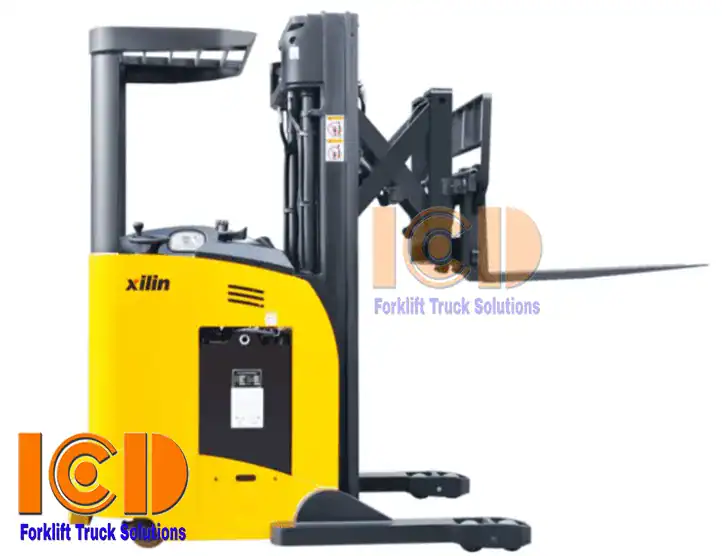

Xilin Electric Single-Scissor Stacker ICD CQDH18C 1800kg - product photo 3
Xilin Electric Single-Scissor Stacker ICD CQDH18C 1800kg - product photo 4

4. Frequently Asked Questions

What is the maximum lift height?

It lifts up to 3,500 mm depending on the chosen configuration.

What is the load capacity?

1,800 kg.

What battery does it use?

A 36V / 700Ah GEL battery with an integrated charger for convenient charging.

What are the travel speeds?

6.5 km/h loaded and 7 km/h unloaded.

Is it suitable for narrow aisles?

Yes. Its compact design and small turning radius allow operation in aisles similar to a manual stacker.
