The Xilin ICD-CDDR15-III is a 1,500 kg electric walkie reach stacker, operated on foot from behind via a tiller, lifting up to 3,000 mm. Imported as a complete unit from the Ningbo Ruyi group (Japanese quality standards) and distributed exclusively by ICD Vietnam, it carries a 2-year manufacturer warranty. Fully electric and easy to maintain, it suits large warehouses moving goods over medium distances.
1. Product Specifications
| Specification | Details |
|---|---|
| Load Capacity | 1500kg |
| Max Lift Height | 3000 mm |
| Certification | CE, ISO 9001 |
| Brand | Xilin (Ningbo Ruyi Joint Stock) |
| Origin | China (Ningbo Ruyi) |
| Warranty | 2 years - ICD Vietnam authorized distributor |
| Fork Dimensions (T/W/L) | 60/170/1070 mm |
| Overall Width | 820 mm |
| Battery | 24 V / 120 Ah |
| Travel Speed | 5.8 / 6 Km/h |
| Machine Weight | 835 Kg |
2. Applications & Key Advantages
- Lifting and moving loads up to 1,500 kg
- Large warehouses and supermarkets transporting goods over medium distances
- High-lift work up to 3,000 mm depending on configuration
- Operations benefiting from advanced AC control and smart regenerative braking
- Sites needing multi-function display with BDI and error codes
- Workplaces prioritising safety with an emergency reverse device and emergency power cut-off
- Continuous handling supported by an overload relief valve and a two-way roller battery system
Browse the full Electric Forklifts range from ICD Vietnam.

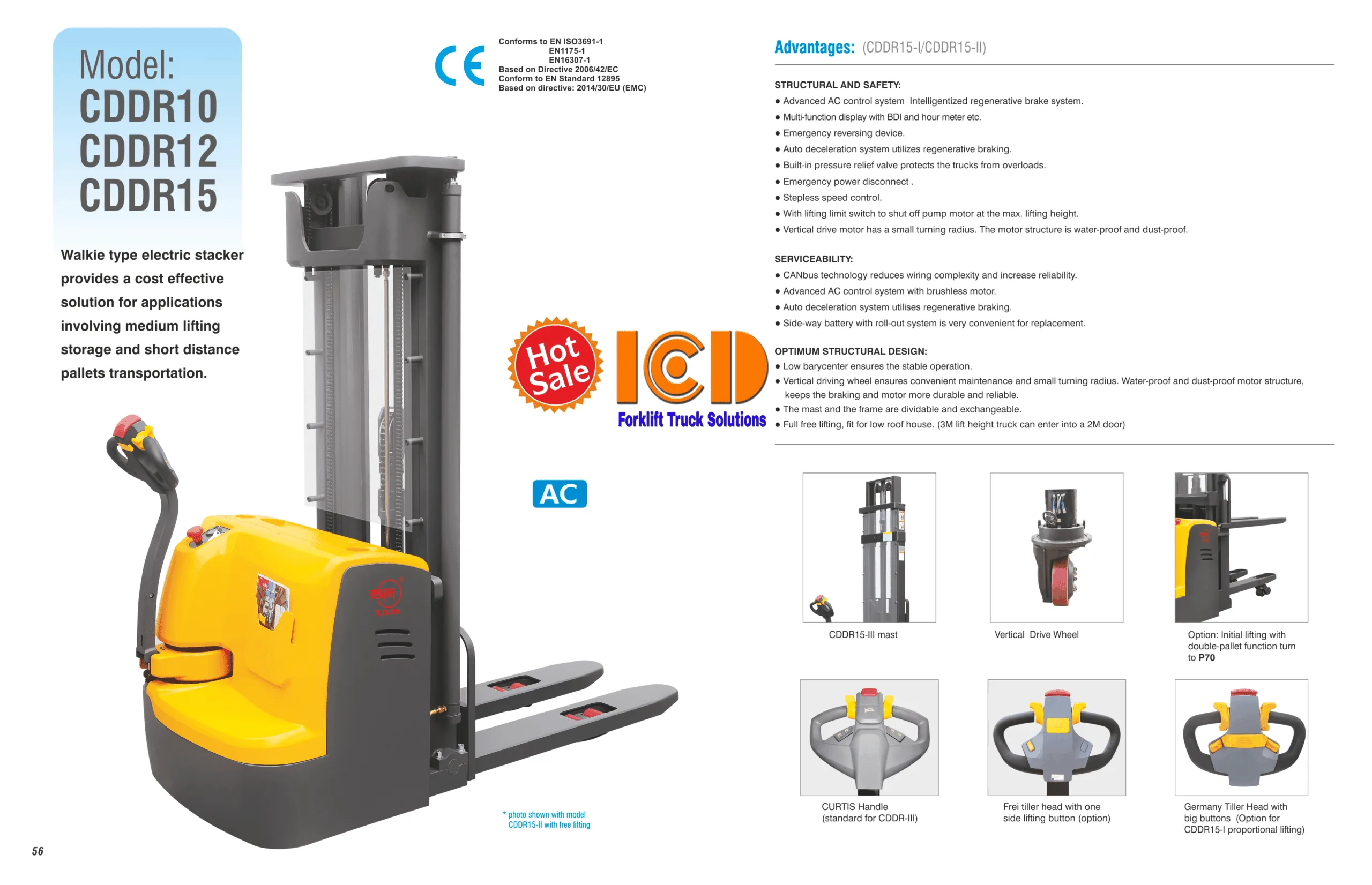

3. Product Images
4. Frequently Asked Questions
What is the maximum lift height?
It lifts up to 3,000 mm depending on the chosen configuration.
What is the load capacity?
1,500 kg.
What battery and travel speed does it have?
A 24V / 120Ah battery, with travel speeds of 5.8 km/h loaded and 6 km/h unloaded.
What control and braking technology does it use?
An advanced AC control system with smart regenerative braking, plus a multi-function display showing BDI and error codes.
What safety features protect the truck?
An emergency reverse device, an emergency power cut-off, an integrated pressure relief valve to prevent overload and a lift-limit switch.
