The Xilin ICD-CQDH18C (single scissor) is a 1,800 kg electric stacker with a reach mechanism for high racking, lifting up to 3,500 mm. Imported as a complete unit from the Ningbo Ruyi group (Japanese quality standards) and distributed exclusively by ICD Vietnam, it carries a 2-year manufacturer warranty. The single-scissor reach reacts quickly and folds compactly for narrow aisles.
1. Product Specifications
| Specification | Details |
|---|---|
| Load Capacity | 1800kg |
| Max Lift Height | 3500 mm |
| Certification | CE, ISO 9001 |
| Brand | Xilin (Ningbo Ruyi Joint Stock) |
| Origin | China (Ningbo Ruyi) |
| Warranty | 2 years - ICD Vietnam authorized distributor |
| Fork Dimensions (T/W/L) | 40/100/1070 mm |
| Overall Width | 600 mm |
| Battery | 36 V / 700 Ah |
| Travel Speed | 6.5/7 Km/h |
| Machine Weight | 3510 Kg |
2. Applications & Key Advantages
- Lifting and moving loads up to 1,800 kg
- Large warehouses and supermarkets transporting goods over medium distances
- Warehouses with deep double-deep racking over 1 m where forks must reach in to retrieve pallets
- Medium-height warehouses up to about 3 m that do not require very high lifting
- Narrow aisles of 2 to 2.5 m where the scissor mechanism folds compactly
- Retrieving pallets stored deep in racking by reaching 600-800 mm into the rack
- Operations needing faster reach response than a conventional mast reach truck
Browse the full Electric Forklifts range from ICD Vietnam.

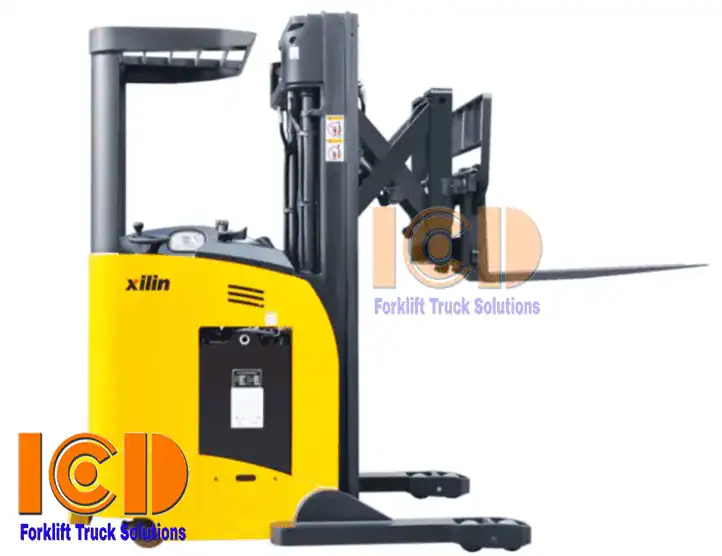

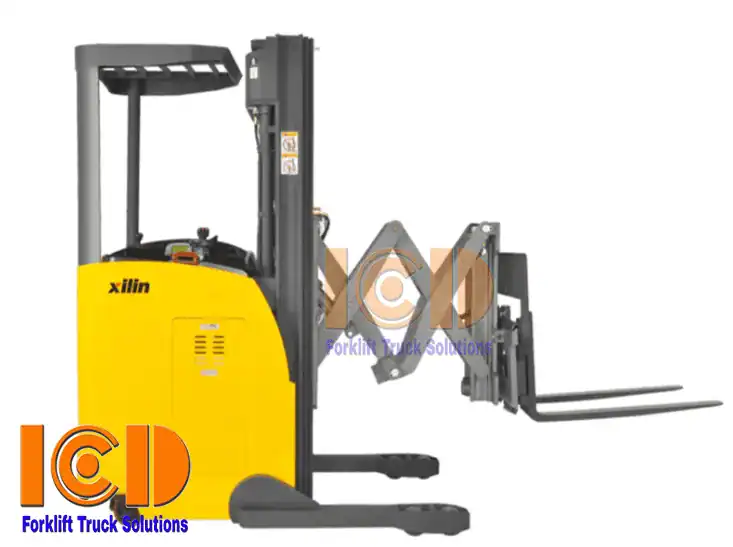

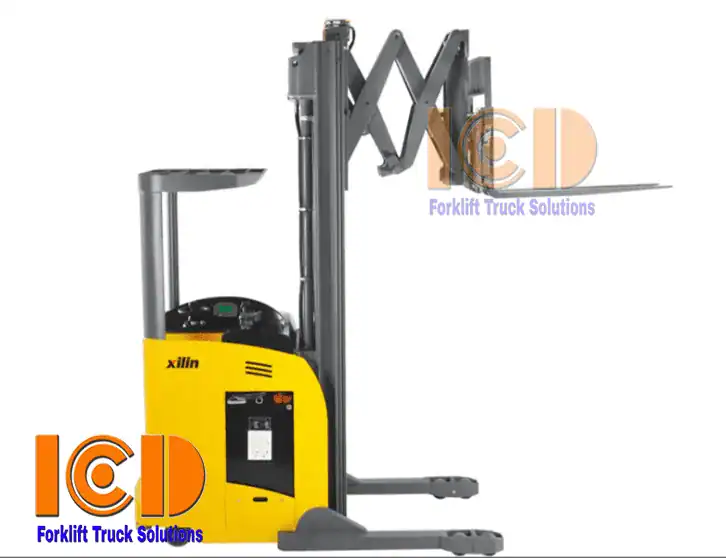

3. Product Images
4. Frequently Asked Questions
What does CQDH18C single scissor mean?
CQDH refers to a fast-response hydraulic electric truck, 18 indicates the 1,800 kg rating, C denotes the compact variant, and single scissor refers to the single-stage scissor reach mechanism.
What are the advantages of a single-scissor reach?
It reaches quickly, folds compactly so it works in aisles as narrow as 2.5 m, and suits pallets stored deep in double-deep racking.
What are its limitations?
Lift height is limited to 3 m, capacity derates as the forks reach further, and the scissor structure is more complex to maintain.
When should I choose this over a mast reach truck?
Choose it for deep double-deep racking over 1 m, medium heights up to 3 m, and narrow 2-2.5 m aisles; for warehouses over 4 m, a conventional mast reach truck is better.
What battery and travel speed does it have?
A 36V / 700Ah GEL battery, with travel speeds of 6.5 km/h loaded and 7 km/h unloaded.
