The Xilin ICD-CBD15W-E is a 1,500 kg electric walkie pallet truck that raises loads to 200 mm for warehouse transport. Imported as a complete unit from the Ningbo Ruyi group (Japanese quality standards) and distributed exclusively by ICD Vietnam, it carries a 2-year manufacturer warranty. Compact yet powerful, it is fully electric, easy to maintain and low in upfront cost.
1. Product Specifications
| Specification | Details |
|---|---|
| Load Capacity | 1500kg |
| Max Lift Height | 200 mm |
| Certification | CE, ISO 9001 |
| Brand | Xilin (Ningbo Ruyi Joint Stock) |
| Origin | China (Ningbo Ruyi) |
| Warranty | 2 years - ICD Vietnam authorized distributor |
| Fork Dimensions (T/W/L) | 53/160/1150 mm |
| Overall Width | 685 mm |
| Battery | 24 V / 65 Ah |
| Travel Speed | 4.3/4.8 Km/h |
| Machine Weight | 205 Kg |
2. Applications & Key Advantages
- Lifting and moving loads up to 1,500 kg
- Large warehouses and supermarkets transporting goods over medium distances
- Demanding conditions requiring a durable electric pallet truck
- Logistics operations moving palletised goods continuously
- Sites needing a small turning radius and ultra-light steering
- Operations valuing balanced wheels that prevent lateral sway and reduce vibration
- Multi-shift work relying on an industrial 24V / 65Ah battery
Browse the full Electric Forklifts range from ICD Vietnam.

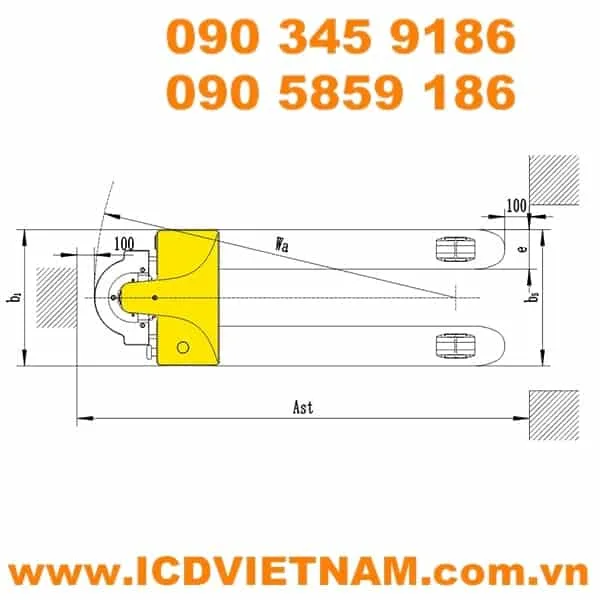

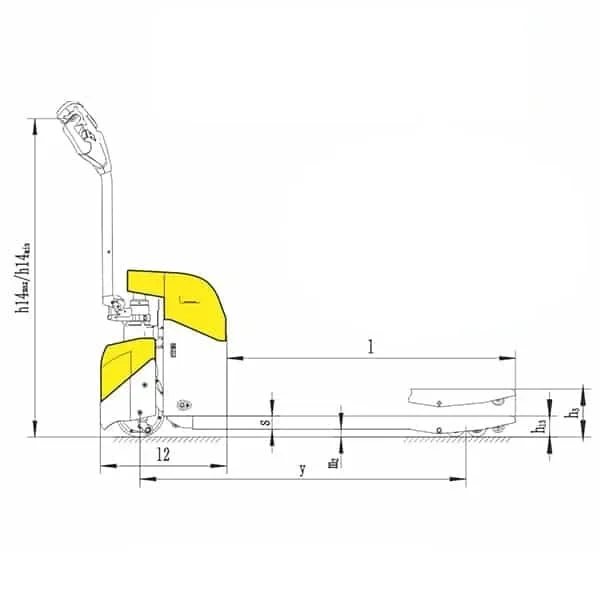

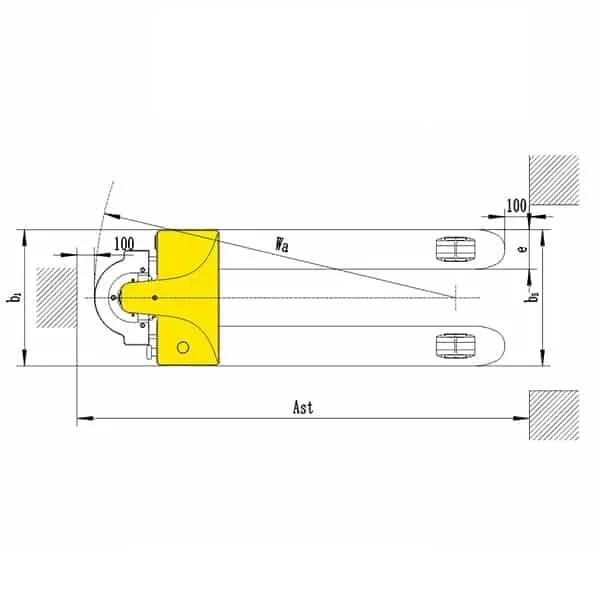

3. Product Images
4. Frequently Asked Questions
What is the load capacity and lift height?
It carries 1,500 kg and raises loads to 200 mm.
What battery does it use?
An industrial 24V / 65Ah battery for long service life.
How does it handle and travel?
A small turning radius and ultra-light steering ease handling, with travel speeds of 4.3 km/h loaded and 4.8 km/h unloaded.
What keeps the truck stable in motion?
Balanced wheels prevent lateral sway, deliver excellent anti-vibration performance and operate without a chain.
What safety features are included?
A height-limit switch cuts the lift circuit at maximum height, and steel masts ensure standard rigidity and durability.
