The Xilin ICD-CDD12R-E is a 1,200 kg electric walkie reach stacker, operated on foot from behind via a tiller, lifting up to 3,000 mm. Imported as a complete unit from the Ningbo Ruyi group (Japanese quality standards) and distributed exclusively by ICD Vietnam, it carries a 2-year manufacturer warranty. Fully electric, easy to maintain and low in upfront cost.
1. Product Specifications
| Specification | Details |
|---|---|
| Load Capacity | 1200kg |
| Max Lift Height | 3000 mm |
| Certification | CE, ISO 9001 |
| Brand | Xilin (Ningbo Ruyi Joint Stock) |
| Origin | China (Ningbo Ruyi) |
| Warranty | 2 years - ICD Vietnam authorized distributor |
| Fork Dimensions (T/W/L) | 60/170/1150 mm |
| Overall Width | 800 mm |
| Battery | 24 V / 120 Ah |
| Travel Speed | 5 / 6 Km/h |
| Machine Weight | 660 Kg |
2. Applications & Key Advantages
- Lifting and moving loads up to 1,200 kg
- Large warehouses and supermarkets transporting goods over medium distances
- High-lift work up to 3,000 mm depending on configuration
- Narrow-aisle warehouses needing a small turning radius
- Operations preferring a GEL battery with an integrated charger
- Facilities valuing a low centre of gravity for improved stability
- Continuous logistics handling with easily replaceable motor and brake components
Browse the full Electric Forklifts range from ICD Vietnam.

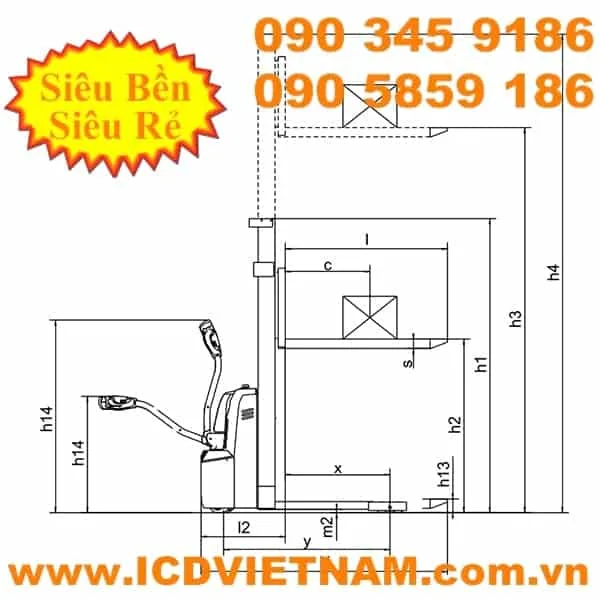

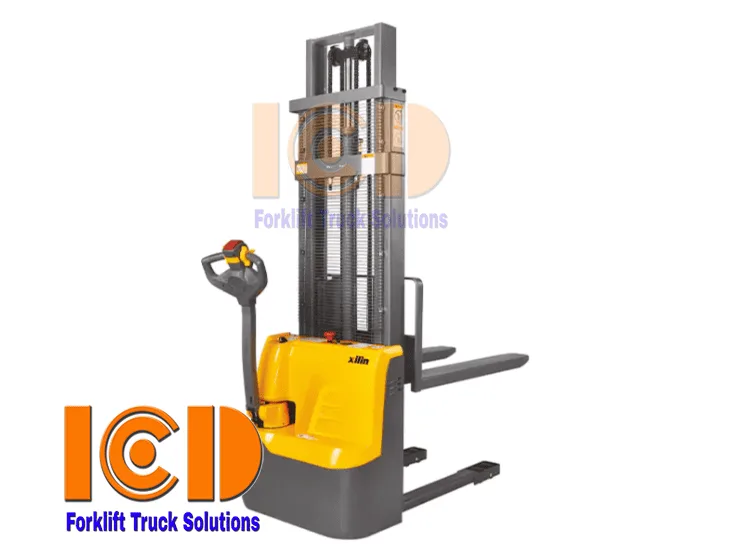

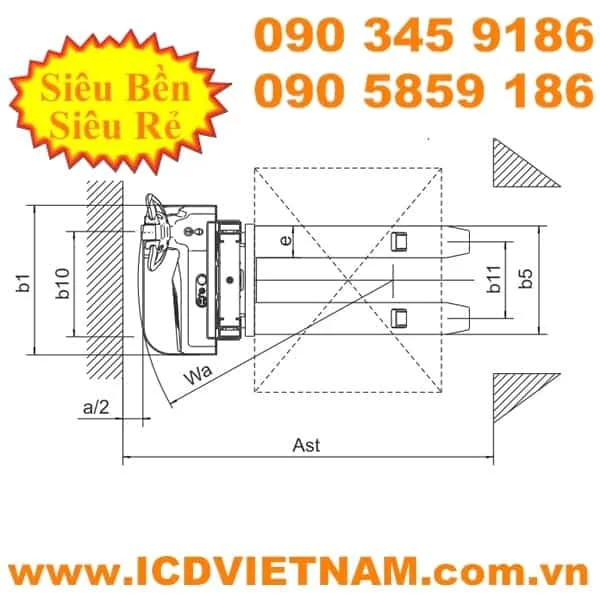

3. Product Images
4. Frequently Asked Questions
What is the maximum lift height?
It lifts up to 3,000 mm depending on the chosen configuration.
What is the load capacity?
1,200 kg.
What battery and travel speed does it have?
A 24V / 120Ah GEL battery, with travel speeds of 5 km/h loaded and 6 km/h unloaded.
Is it suitable for narrow aisles?
Yes. Its compact design and small turning radius allow operation in aisles similar to a manual stacker.
What is the machine weight?
The truck weighs 660 kg.
