The Xilin ICD-CDD10B-III is a 1,000 kg semi-automatic electric high-lift walkie stacker that raises loads up to 3,000 mm. Imported as a complete unit from the Ningbo Ruyi group (Japanese quality standards) and distributed exclusively by ICD Vietnam, it carries a 2-year manufacturer warranty. It is designed with a manual pull-chain as a backup should the battery run flat.
1. Product Specifications
| Specification | Details |
|---|---|
| Load Capacity | 1000kg |
| Max Lift Height | 3000 mm |
| Certification | CE, ISO 9001 |
| Brand | Xilin (Ningbo Ruyi Joint Stock) |
| Origin | China (Ningbo Ruyi) |
| Warranty | 2 years - ICD Vietnam authorized distributor |
| Fork Dimensions (T/W/L) | 60/170/1070 mm |
| Overall Width | 800 mm |
| Battery | 12 V / 120 Ah |
| Machine Weight | 445 Kg |
2. Applications & Key Advantages
- Lifting and moving loads up to 1,000 kg
- Large warehouses and supermarkets transporting goods over medium distances
- High-lift work up to 3,000 mm depending on configuration
- Operations wanting a backup manual pull-chain when the battery is depleted
- Sites needing tiller-assisted chain steering to reduce operator effort
- Facilities that benefit from an anti-explosion valve guarding against sudden fork movement
- Continuous handling supported by a 12V / 120Ah battery
Browse the full Electric Forklifts range from ICD Vietnam.

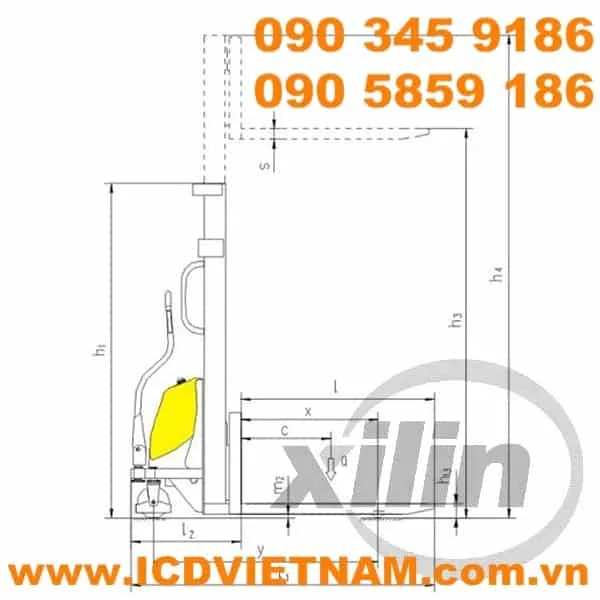

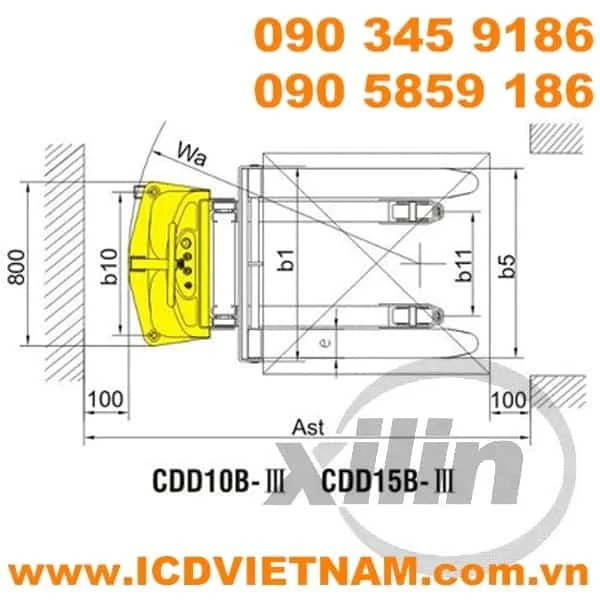

3. Product Images
4. Frequently Asked Questions
What is the maximum lift height?
It lifts up to 3,000 mm depending on the chosen configuration.
What is the load capacity?
1,000 kg.
What does semi-automatic mean here?
The stacker is not fully electric; it includes a manual pull-chain so it can still be used if the battery runs flat.
What battery does it use?
A 12V / 120Ah battery.
What reduces operator workload?
Tiller-assisted chain steering reduces physical effort, and a foot brake eases operation.
