The Xilin ICD-CBD20SR is a 2,000 kg electric rider reach stacker with a stand-on platform for the operator, designed for medium-distance transport in warehouses. Imported as a complete unit from the Ningbo Ruyi group (Japanese quality standards) and distributed exclusively by ICD Vietnam, it carries a 2-year manufacturer warranty. Fully electric and easy to maintain, it lifts up to 2,000 mm.
1. Product Specifications
| Specification | Details |
|---|---|
| Load Capacity | 2000kg |
| Max Lift Height | 2000 mm |
| Certification | CE, ISO 9001 |
| Brand | Xilin (Ningbo Ruyi Joint Stock) |
| Origin | China (Ningbo Ruyi) |
| Warranty | 2 years - ICD Vietnam authorized distributor |
| Fork Dimensions (T/W/L) | 54/180/1100 mm |
| Overall Width | 850 mm |
| Battery | 24 V / 240 Ah |
| Travel Speed | 9 / 9.1 Km/h |
| Machine Weight | 1130 Kg |
2. Applications & Key Advantages
- Lifting and moving loads up to 2,000 kg
- Large warehouses and supermarkets transporting goods over medium distances
- Operations needing a stand-on rider platform for faster travel between points
- Logistics facilities running continuous palletised goods movement
- Warehouses requiring reduced operator effort through tiller-assisted chain steering
- Sites that benefit from an anti-explosion valve guarding against sudden fork movement
- Multi-shift operations relying on a 24V / 240Ah battery
Browse the full Electric Forklifts range from ICD Vietnam.

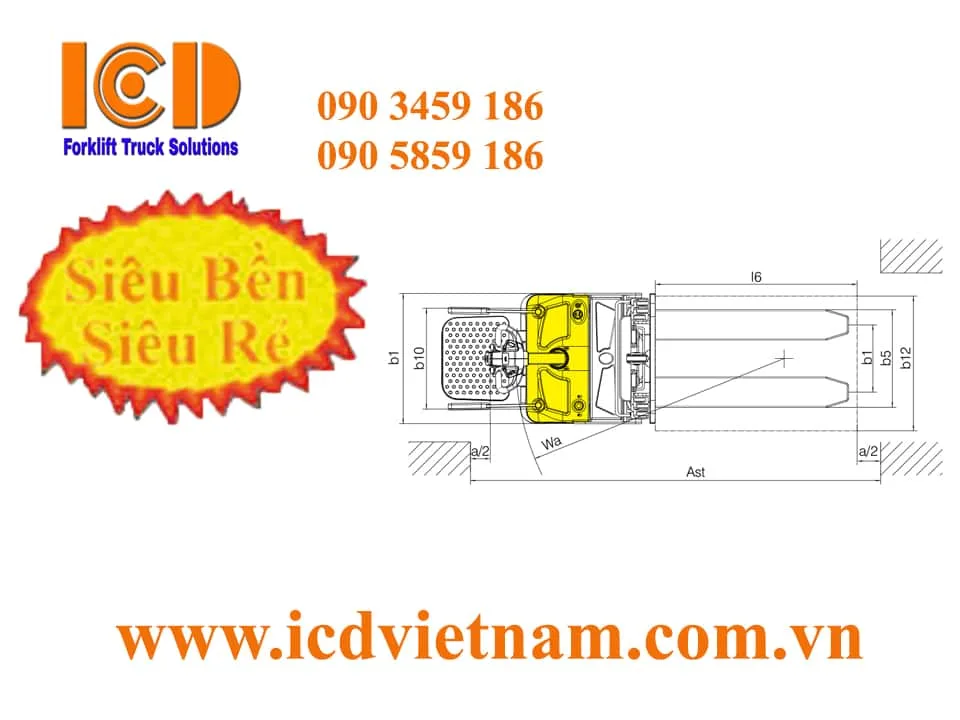

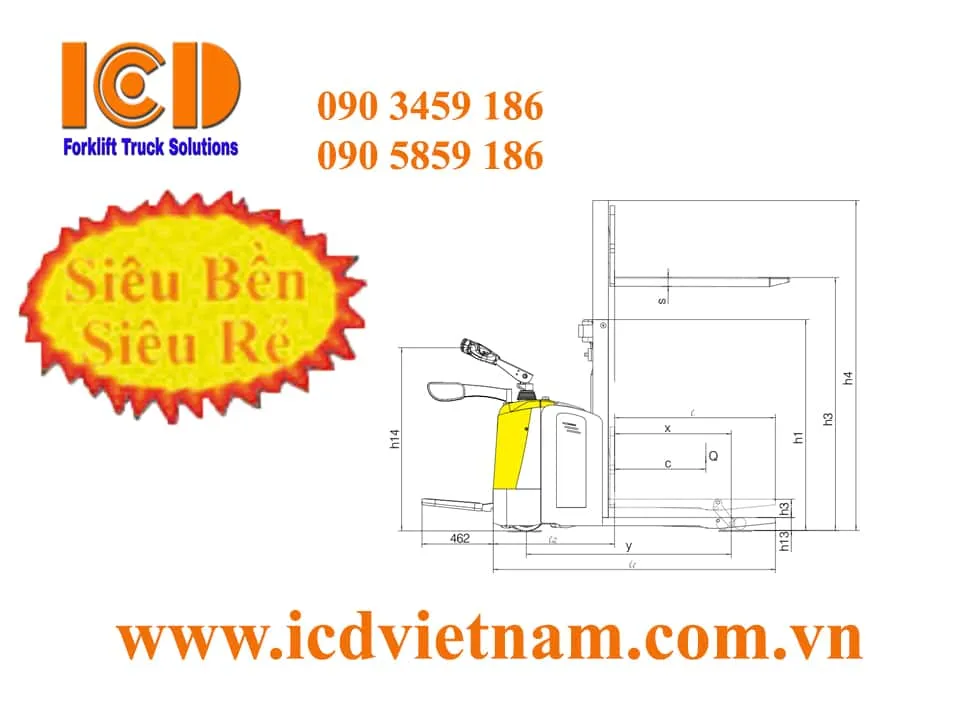

3. Product Images
4. Frequently Asked Questions
What is the load capacity and lift height?
It carries 2,000 kg and lifts up to 2,000 mm.
What battery and travel speed does it have?
A 24V / 240Ah battery, with travel speeds of 9 km/h loaded and 9.1 km/h unloaded.
What reduces operator workload?
Tiller-assisted chain steering significantly reduces physical effort, and a foot brake eases operation.
What safety features are included?
An anti-explosion valve protects against sudden fork movement, and steel masts ensure standard rigidity and durability.
What is the machine weight?
The truck weighs 1,130 kg.
