The Xilin ICD-CDDK12-III is a 1,200 kg electric counterbalanced stacker that lifts up to 3,000 mm. Imported as a complete unit from the Ningbo Ruyi group (Japanese quality standards) and distributed exclusively by ICD Vietnam, it carries a 2-year manufacturer warranty. Its reinforced K-frame handles off-centre loads better than a standard C-frame, suiting large warehouses moving goods over medium distances.
1. Product Specifications
| Specification | Details |
|---|---|
| Load Capacity | 1200kg |
| Max Lift Height | 3000 mm |
| Certification | CE, ISO 9001 |
| Brand | Xilin (Ningbo Ruyi Joint Stock) |
| Origin | China (Ningbo Ruyi) |
| Warranty | 2 years - ICD Vietnam authorized distributor |
| Fork Dimensions (T/W/L) | 60/170/1070 mm |
| Overall Width | 850 mm |
| Battery | 24 V / 120 Ah |
| Travel Speed | 6,5 / 6,7 Km/h |
| Machine Weight | 870 Kg |
2. Applications & Key Advantages
- Lifting and moving loads up to 1,200 kg
- Large warehouses and supermarkets transporting goods over medium distances
- Mechanical and automotive manufacturing handling heavy, unevenly distributed loads
- Metal parts warehouses where pallets often have weight concentrated on one side
- LCL (less-than-container-load) operations with mixed, non-optimally arranged goods
- Operations needing a stacker that resists twisting under off-centre loads
- Multi-shift warehouse work relying on a 24V / 120Ah battery
Browse the full Electric Forklifts range from ICD Vietnam.

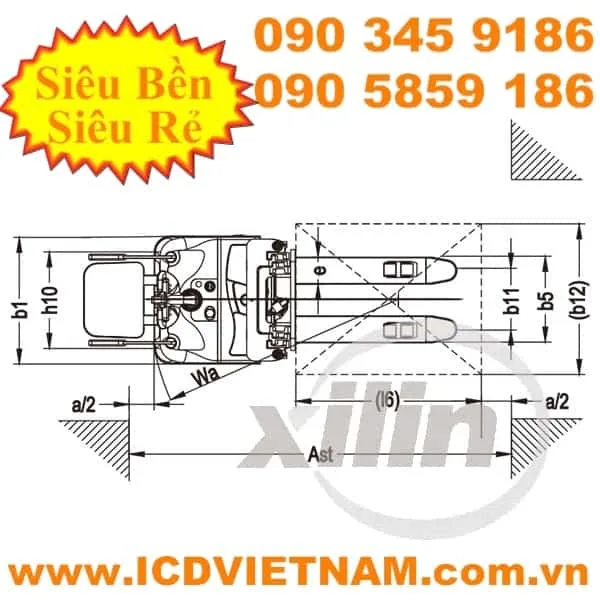

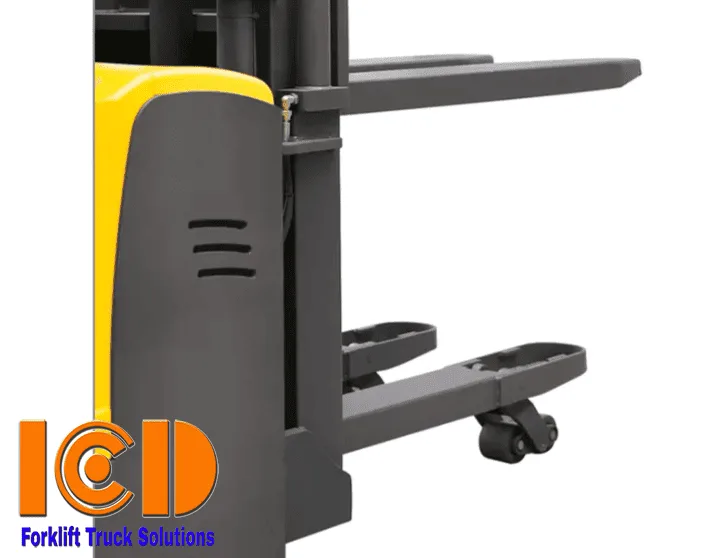

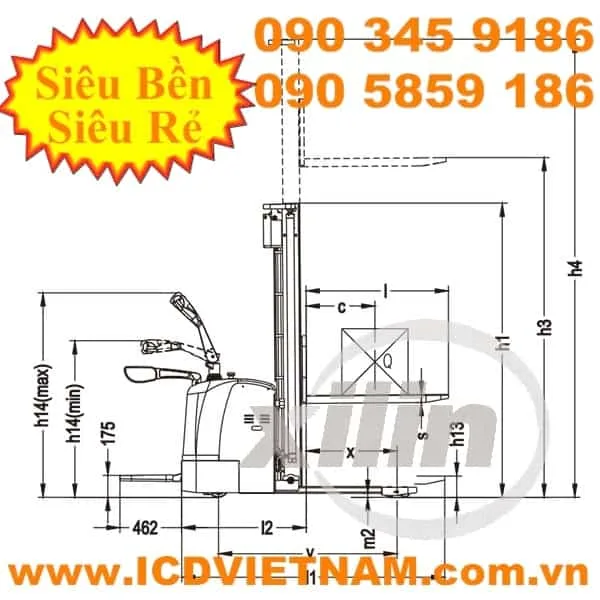

3. Product Images
4. Frequently Asked Questions
What does the CDDK12 model code mean?
CDDK denotes the premium compact K-series drive variant, and 12 indicates the 1,200 kg load rating.
What is the difference between a K-frame and a C-frame?
A C-frame uses a single C-shaped structure adequate for symmetric loads but weaker with off-centre loads, while the K-frame adds diagonal cross-bracing to handle 25-30% off-centre loading without deforming.
Which industries benefit from the K-series?
Mechanical and automotive manufacturing, metal parts warehouses, and LCL container handling, where loads are heavy or unevenly distributed.
What are the lift height and travel speed?
It lifts to 3,000 mm and travels at 6.5 km/h loaded and 6.7 km/h unloaded.
What safety features does it include?
An anti-explosion valve protects against sudden fork movement, a foot brake eases operation, and a tiller-linked chain steering system reduces operator effort.
