The Floor-Lining Plastic Pallet PL01-LS measures 1200 x 1000 x 150 mm. Colors: blue. It weighs 15.5 kg. It has a static load of 3,000 kg and a dynamic load of 1,000 kg. Material: HDPE.
1. Specifications of the Floor-Lining Plastic Pallet PL01-LS
| Specification | Details |
|---|---|
| Product code | PL01-LS |
| Dimensions | 1200 x 1000 x 150 mm |
| Static load | 3,000 kg |
| Dynamic load | 1,000 kg |
| Racking load | Not published by ICD |
| Weight | 15.5 kg |
| Material | HDPE |
| Color | Blue |
2. How to Read the Load Ratings of This Pallet
Under ISO 8611, static load is the mass a pallet carries when it rests on a flat floor (3,000 kg for this code); dynamic load is the mass it carries while a forklift or hand pallet truck moves it, so the figure is lower (1,000 kg); ICD has not published a racking load for this code. The full definitions are on the ISO 8611-1 standard page. If the pallet will go on a racking, ask ICD before ordering rather than inferring a racking load from the static figure.
One pallet covers 1.2 m² of floor, so a layer of 100 pallets covers about 120 m².
Browse the full Floor-Lining Plastic Pallets range from ICD Vietnam.
3. Comparison with Other 1200x1000 mm Pallets from ICD
The table lists ICD pallets with the same 1200x1000 mm footprint and the figures ICD has published. "Not published" means the product page has no figure.
| Product code | Height | Static load | Dynamic load | Weight |
|---|---|---|---|---|
| PL01-LS (this page) | 150 mm | 3,000 kg | 1,000 kg | 15.5 kg |
| PL09-LS | 145 mm | 3,000 kg | 1,000 kg | 16.8 kg |
| ICD-121014-CB | 140 mm | 2,000 kg | 1,000 kg | 13.5 kg |
| PL03-LS | 78 mm | 3,000 kg | Not published | 12 kg |

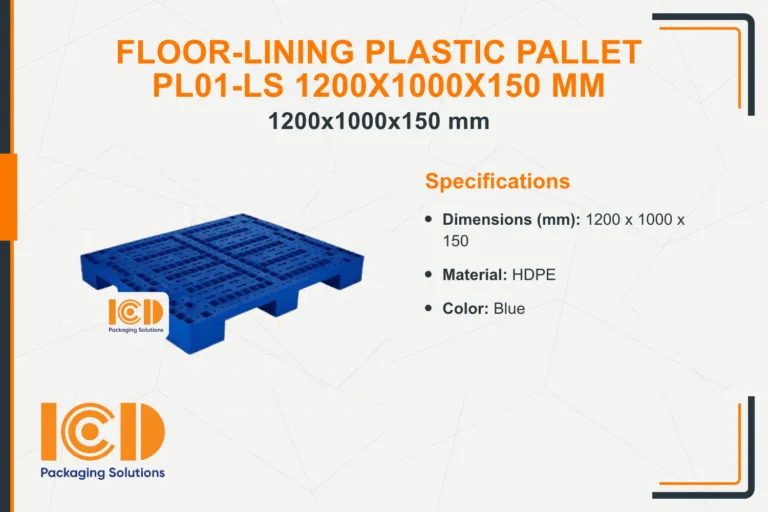

4. Product Images
5. Frequently Asked Questions
How many kg can the PL01-LS carry?
ICD publishes a static load of 3,000 kg and a dynamic load of 1,000 kg. ICD has not published a racking load for this code, so ask ICD first if you plan to use a rack.
How much does the PL01-LS weigh?
It weighs 15.5 kg according to the specification ICD publishes.
Can I order a specific color or print a logo?
ICD lists these colors for this code: blue. Please contact ICD for the conditions.
