Grooved (Slotted) Plastic Tray for Printing Industry - ICD is a grooved (slotted) plastic tray for the printing industry distributed by ICD Vietnam, available in 19 sizes ranging 800x610 to 1650x1200 mm, dynamic load 600-1500 kg, static load 1500-4000 kg, moulded from virgin HDPE. Used across printing plants to replace wooden pallets and protect paper and semi-finished print stock. Two-year warranty, nationwide delivery. Request a quote: 0983 797 186.
1. Full Size Chart - 19 Codes
The table below lists every code and its specifications so you can match the size to your paper format and press. Call or message on Zalo for help picking the right code.
| Product Code | Dimensions (L x W x H) | Dynamic Load | Static Load |
|---|---|---|---|

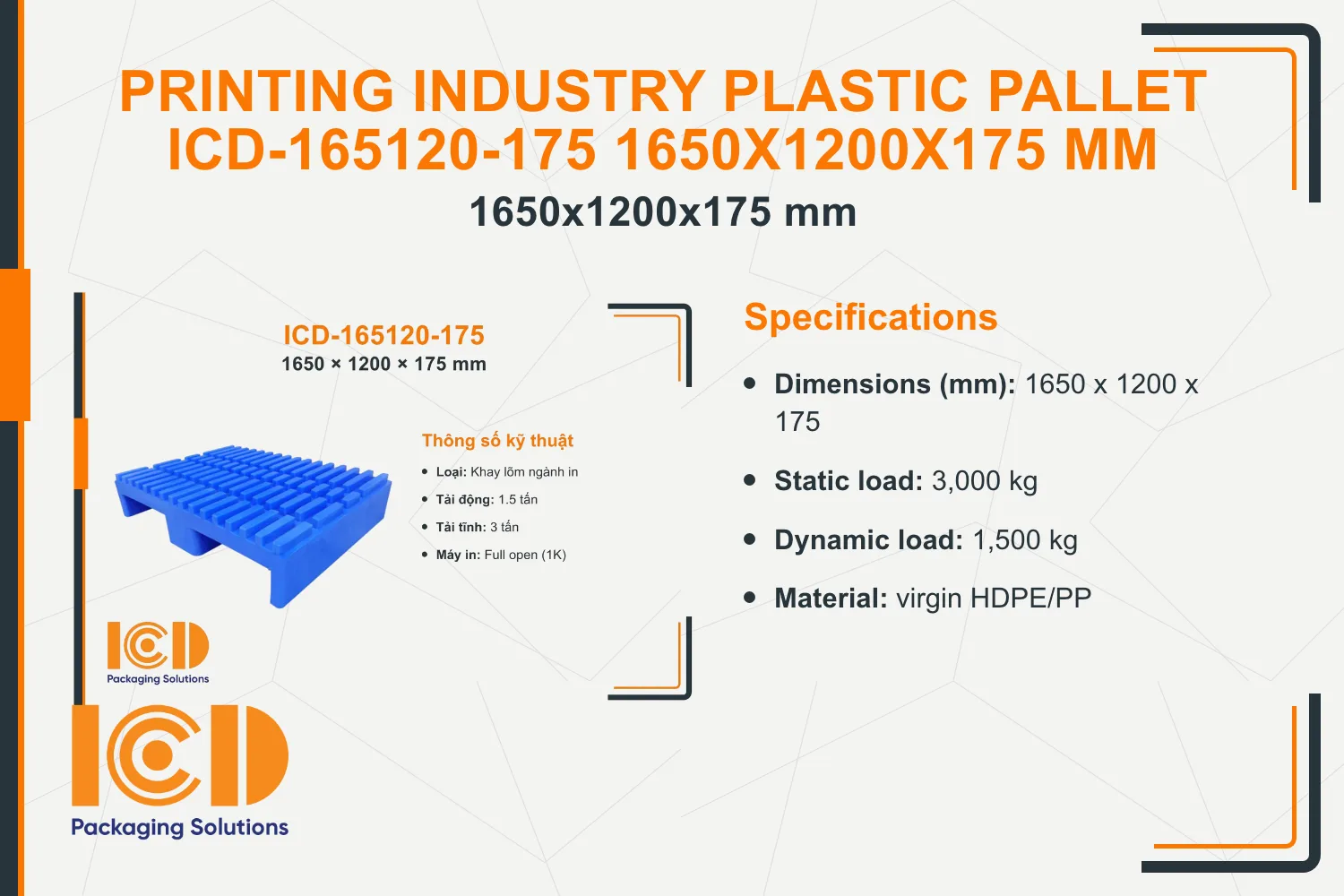

| ICD-165120-175 | 1650 x 1200 x 175 mm | 1500 kg | 3000 kg |
| ICD-147107-160 | 1465 x 1065 x 160 mm | 1500 kg | 2000 kg |
| ICD-12590-175 | 1250 x 900 x 175 mm | 1000 kg | 4000 kg |
| ICD-1109-170 | 1100 x 900 x 170 mm | 1000 kg | 3000 kg |
| ICD-1208-190 | 1200 x 800 x 190 mm | 1500 kg | 3000 kg |
| ICD-1208-160-L | 1200 x 800 x 160 mm | 1000 kg | 2000 kg |
| ICD-1108-180 | 1100 x 800 x 180 mm | 1000 kg | 3000 kg |
| ICD-1008-170 | 1000 x 800 x 170 mm | 1000 kg | 2500 kg |
| ICD-10576-175 | 1050 x 760 x 175 mm | 1000 kg | 1500 kg |
| ICD-10675-175 | 1060 x 750 x 175 mm | 1500 kg | 3000 kg |
| ICD-1007-170 | 1000 x 700 x 170 mm | 1000 kg | 2500 kg |
| ICD-9672-150 | 960 x 720 x 150 mm | 1000 kg | 1500 kg |
| ICD-8673-170 | 860 x 730 x 170 mm | 600 kg | 2000 kg |
| ICD-8767-165 | 870 x 670 x 165 mm | 1000 kg | 1500 kg |
| ICD-8072-160 | 800 x 720 x 160 mm | 1000 kg | 1500 kg |
| ICD-8265-150 | 820 x 650 x 150 mm | 1000 kg | 1500 kg |
| ICD-8065-160 | 800 x 650 x 160 mm | 1000 kg | 1500 kg |
| ICD-8062-160 | 800 x 620 x 160 mm | 1000 kg | 1500 kg |
| ICD-8061-170 | 800 x 610 x 170 mm | 600 kg | 2000 kg |
2. Why Choose ICD Vietnam
ICD Vietnam distributes a grooved (slotted) plastic tray for the printing industry directly, with nationwide delivery and a two-year manufacturer warranty. Custom sizes outside the 19 standard codes above are available on request to match specific press formats.
3. Frequently Asked Questions
Can sizes be customised beyond the 19 standard codes?
Yes, ICD accepts custom manufacturing orders for specific press or paper formats. Contact the hotline for a quote.
What is the delivery time?
In-stock items ship within 1-3 days in Hanoi/Ho Chi Minh City, 3-5 days for other provinces.
Is exchange available if the wrong size is ordered?
ICD advises on specifications carefully before ordering to prevent mismatches; manufacturing defects are replaced within the warranty period.
4. Request a Quote
Northern Vietnam: 0983 797 186 / 090 345 9186 / 090 5859 186 - Email: sales@icdvietnam.com.vn
Southern Vietnam: 098 6784 186 - Email: sales@icdvietnam.com.vn
Zalo: Chat on Zalo
