The Xilin ICD-SJJA20E is a heavy-duty manual high-lift stacker that uses a hydraulic system to raise loads up to 1500 mm, with a rated capacity of 2000 kg. Distributed exclusively by ICD Vietnam and imported fully assembled from the Ningbo Ruyi group, it carries a 2-year official warranty. Compact and sturdy, it offers adjustable forks to suit different pallets.
1. Product Specifications
| Specification | Details |
|---|---|
| Load Capacity | 2000kg |
| Max Lift Height | 1500 mm |
| Certification | CE, ISO 9001 |
| Brand | Xilin (Ningbo Ruyi Joint Stock) |
| Origin | China (Ningbo Ruyi) |
| Warranty | 2 years - ICD Vietnam authorized distributor |
| Fork Dimensions (T/W/L) | 32/120/900 mm |
| Overall Width | 1000 mm |
| Machine Weight | 292 Kg |
2. Applications & Key Advantages
- Logistics warehouses: lifting and moving pallets of consumer goods, food and pharmaceuticals from trucks into storage
- Manufacturing plants: transferring raw-material pallets between production lines
- Supermarkets and retail stores: stocking shelves and moving large volumes of cartons
- Transport companies: loading and unloading containers and trucks at ports and yards
- Mechanical workshops: moving steel billets, small machinery and heavy spare parts
- Stacking loads to a height of up to 1500 mm above floor level
- Handling varied pallet types using adjustable fork spacing from 0 to 740 mm
- Operations needing both foot- and hand-pump lifting for easier control
- Sites requiring a compact stacker with a 1250 mm turning radius for tight aisles
Browse the full Forklifts range from ICD Vietnam.

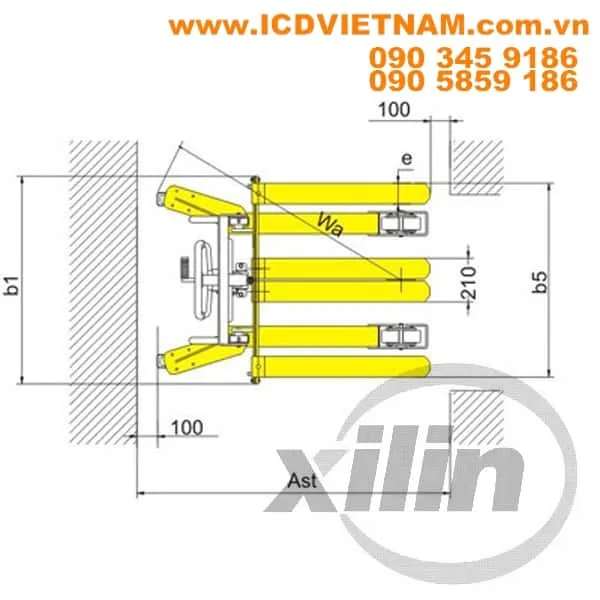

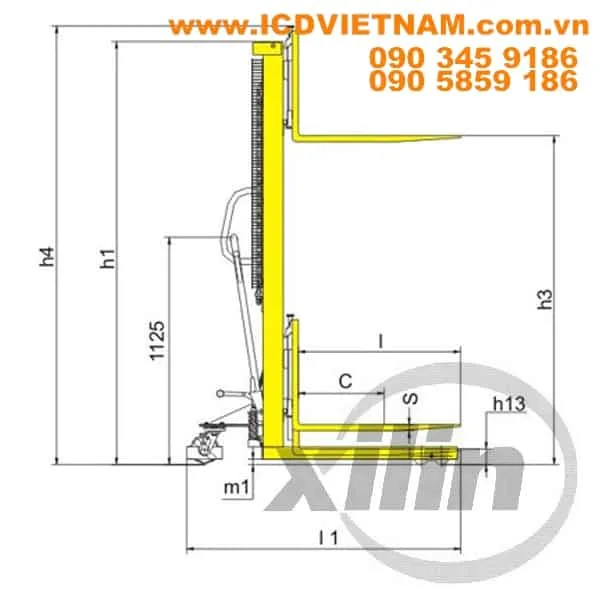

3. Product Images
4. Frequently Asked Questions
What load can the ICD-SJJA20E lift?
It is rated to lift up to 2000 kg, suitable for most pallet-handling needs in small and medium industrial warehouses.
How high can this stacker raise loads?
The maximum lift height is 1500 mm, raising goods well above floor level for stacking.
Can the forks be adjusted?
Yes. The fork spacing is adjustable from 0 to 740 mm to fit different pallets and load types, and fork dimensions are 32/120/900 mm.
How is the unit operated?

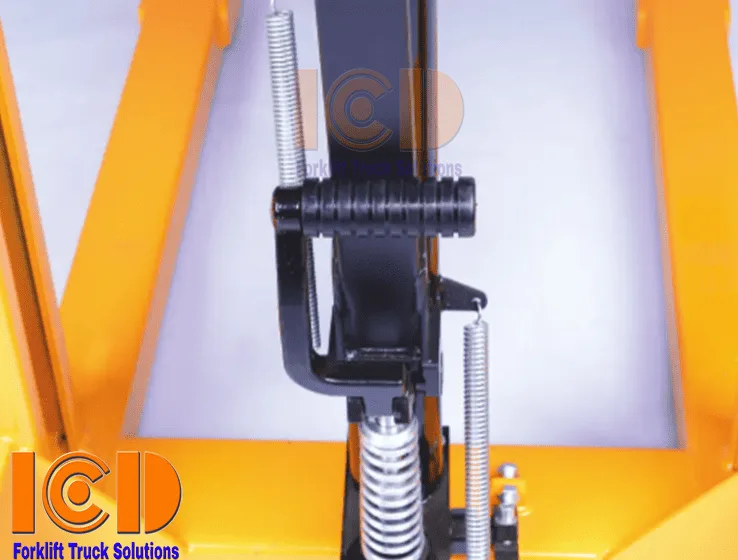

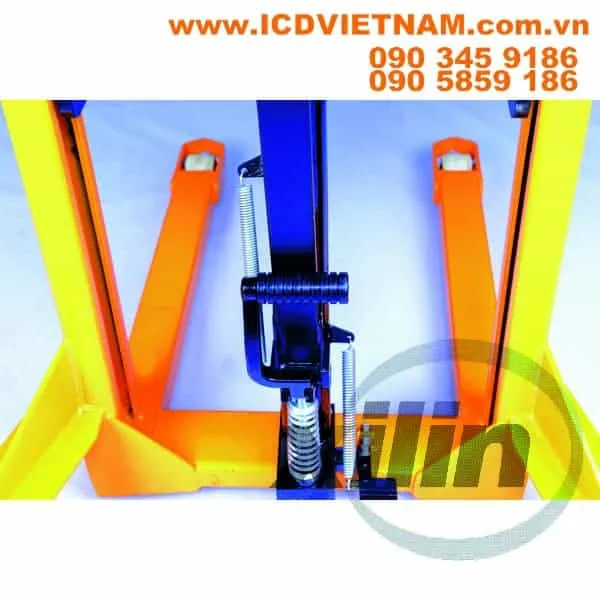

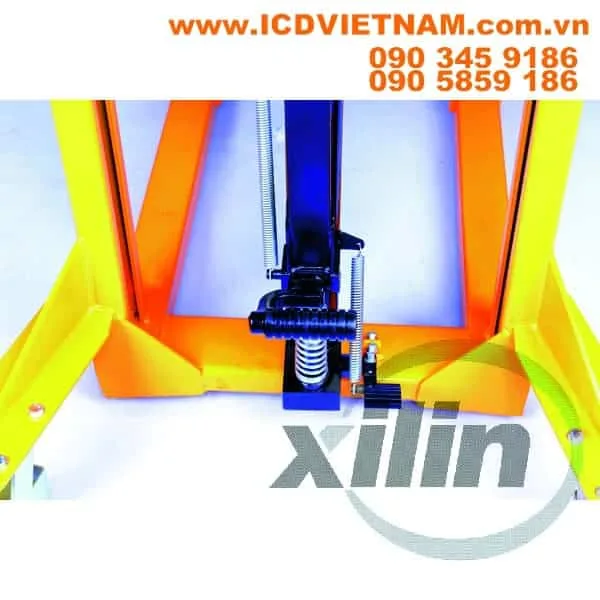

Lifting can be done by both foot pedal and hand pump, making it easy for the operator to raise loads. A metal mesh guard protects the user from the lift chain.
What are the machine dimensions and weight?
The stacker stands 2085 mm tall, is 1000 mm wide overall and weighs 292 kg, with wheel and brake safety systems for stable operation.
