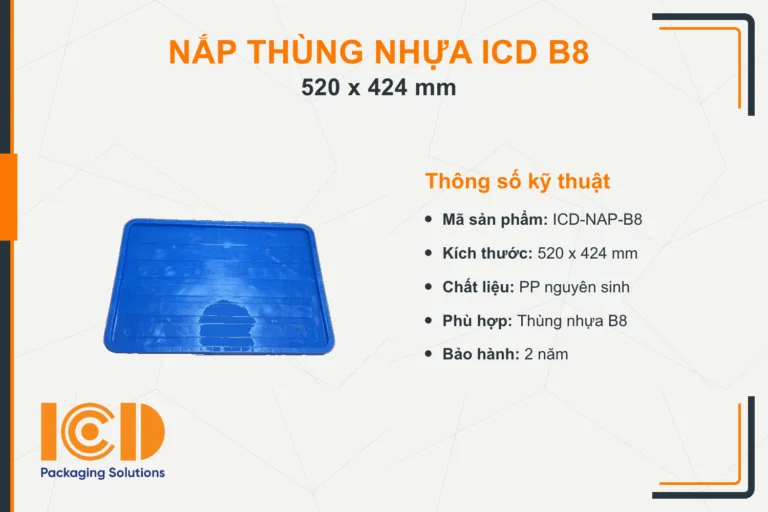

The ICD B8 plastic bin lid is designed to fit perfectly with Plastic Crates ICD B8 (English), manufactured from virgin PP for long-lasting dust and contamination protection in industrial environments.
| Specification | Value |
|---|---|
| Product Code | ICD-NAP-B8 |
| Outer Dimensions (L x W x H) | 520x424x25mm |
| Inner Dimensions (L x W) | 484x396mm |
| Weight | 330g ± 5% |
| Material | Virgin PP |
| Compatible With | Plastic Crates ICD B8 |
| Origin | Vietnam |
| Warranty | 2 years |
Applications:
- Electronics manufacturing: dust-free cover for PCB and component bins
- Food processing: hygienic lid for raw material and semi-finished product bins
- Logistics: secure forklift stacking without cargo spillage
- Pharmaceutical/Chemical: isolate sensitive products from moisture and dust
Compare ICD plastic bin lid sizes
ICD Vietnam offers matching lids for each bin size in the range. Confirm the code that matches your bin before ordering:
| Code | Outer dimensions | Weight | Material |
|---|---|---|---|
| B2 | 452x272x25mm | 200g | Virgin HDPE |
| B4 | 510x340x25mm | 260g | Virgin HDPE |
| B7 | 370x280x25mm | 180g | Virgin PP |
| B8 (this lid) | 520x424x25mm | 330g | Virgin PP |
| T8 | 610x420x30mm | 450g | Virgin HDPE |
Frequently Asked Questions
What is the largest lid size ICD offers besides T8?
Among the B-series lids, B8 (520x424x25mm, 330g) is the largest - if you need an even bigger size, see the T8 lid (610x420x30mm) in the comparison table above.
Does the B8 lid work for logistics stacking?
Yes, like the rest of the range it supports secure forklift stacking without cargo spillage, useful when moving loaded bins through a warehouse or distribution center.
What material is the B8 lid made from?
B8 uses virgin PP, offering good chemical resistance for the 520x424mm bin it is designed to match.
Fit and Installation
Fit and installation: the B8 lid is placed over the bin opening and pressed at the corners to seat against the rim, allowing quick open/close access during picking or packing operations without tools.
Why Virgin PP: PP (polypropylene) offers good chemical resistance and a lighter weight than HDPE for the same thickness, which is why ICD uses it for the B7 and B8 lids in this range.
Care and Ordering
Care and ordering: clean the B8 lid with a damp cloth between handling cycles; ICD Vietnam accepts lid-only reorders for customers who already have matching B8 bins and need spare or replacement covers.
