The ICD-DBC800 is an automatic carton stretch wrapping machine made in Vietnam for wrapping small to medium cartons and boxes rather than full pallets. It fills the gap a normal pallet wrapper cannot serve, wrapping individual parcels before they leave the warehouse, and is the entry point in ICD's automatic wrapping range. Handles boxes up to 800 x 600 x 600 mm and 30 kg.
1. Product Specifications
| Specification | Details |
|---|---|
| Product code | ICD-DBC800 |
| Origin | Vietnam |
| Warranty | 2 years |
2. Applications & Key Advantages
- E-commerce fulfilment warehouses wrapping individual parcels before labelling and dispatch
- Boxed-goods producers wrapping single cartons before shipping
- Book boxes, cosmetics boxes, electronic components and small household goods in cartons
- Moisture, dust and damage protection by wrapping PE film around the outside of the carton
- Boosting output 3-5 times versus fully manual wrapping, with a more even, professional film layer
- Handles cartons up to 800 x 600 x 600 mm and up to 30 kg
- Wrap speed of 8-15 boxes per minute depending on size
- PE film width of 100-250 mm on 220V/50Hz single phase
- Compact machine footprint of 1200 x 700 x 1100 mm at 85 kg, easy to place in a packing area
Browse the full Stretch Wrapping Machines range from ICD Vietnam.

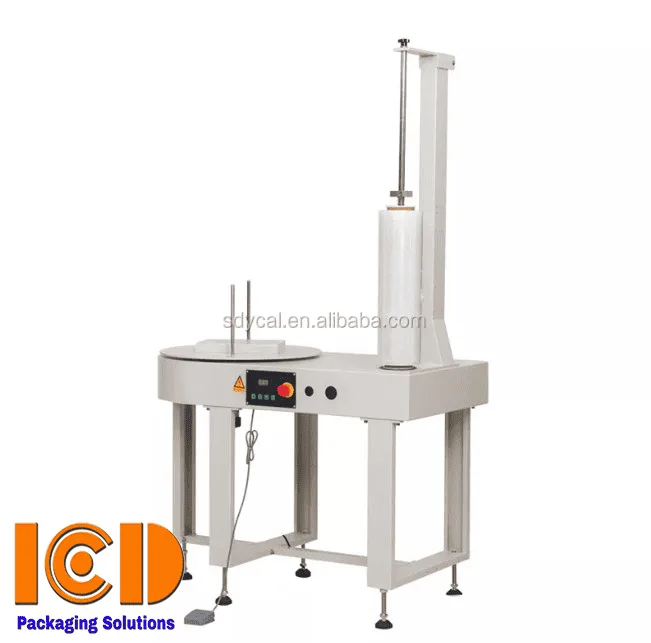

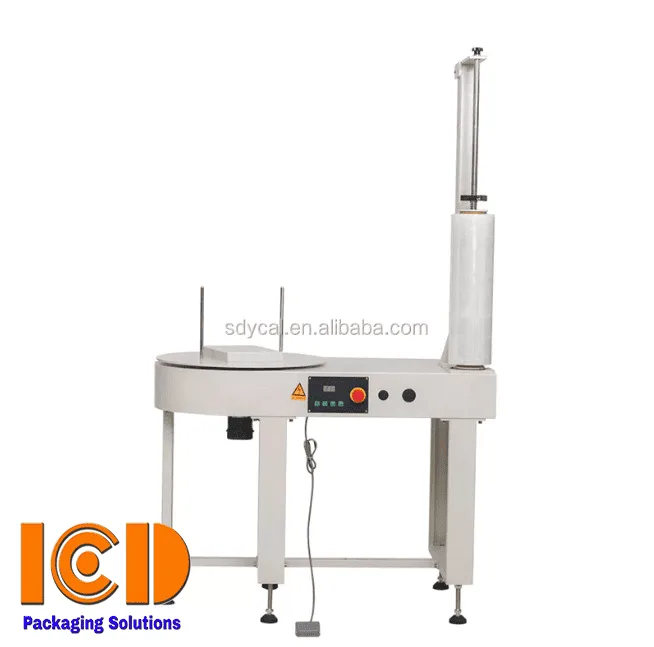

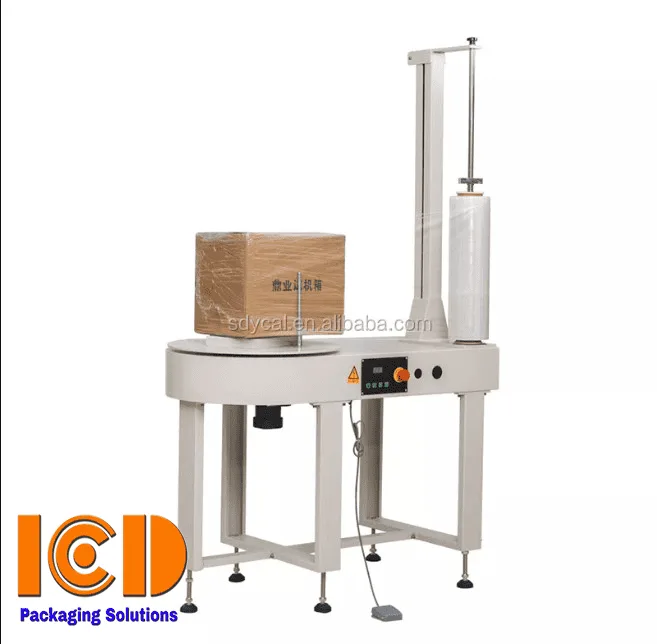

3. Product Images
4. Frequently Asked Questions
What goods is the DBC800 for?
It is built for small to medium goods packed in cartons, such as book boxes, cosmetics, electronic components and small household items, wrapping PE film around the carton to resist moisture, dust and transport damage.
Can the DBC800 replace a pallet wrapper?
No. They serve different purposes. The DBC800 handles individual cartons up to 30 kg and 800 x 600 x 600 mm, while pallet wrappers handle whole built-up pallets. Many warehouses use both.
Can it wrap cartons that are not perfectly square?
Yes, but the speed and film tension should be adjusted. For uneven boxes, run slower so the film follows the shape of the product.
Can it wrap bags or items with no box?
It is not recommended. The DBC800 is optimised for rigid cartons; bags or unstable shapes are hard to wrap evenly and can jam the machine.
What are its main specifications?
Maximum product size 800 x 600 x 600 mm, maximum weight 30 kg, wrap speed 8-15 boxes/min, PE film width 100-250 mm, 220V/50Hz single phase, machine size 1200 x 700 x 1100 mm, weight 85 kg.
