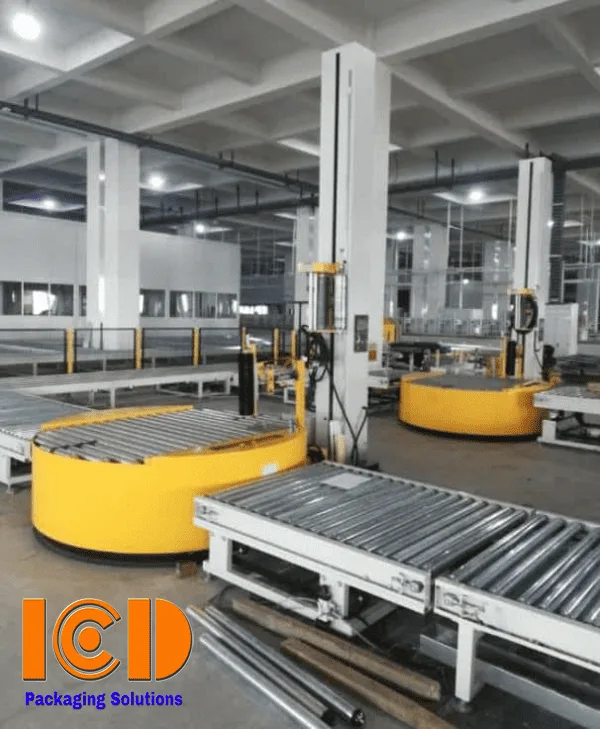

The ICD-T1800FZ is an automatic pallet stretch wrapping machine integrated with a conveyor line. Loaded pallets travel along the conveyor to the wrapping station, are wrapped, then continue on a second conveyor to the required position. It suits high-volume pallet output, handles loads up to 1500 kg at 20-40 pallets per hour, and wraps up to 2000 mm tall with a 250% film pre-stretch.

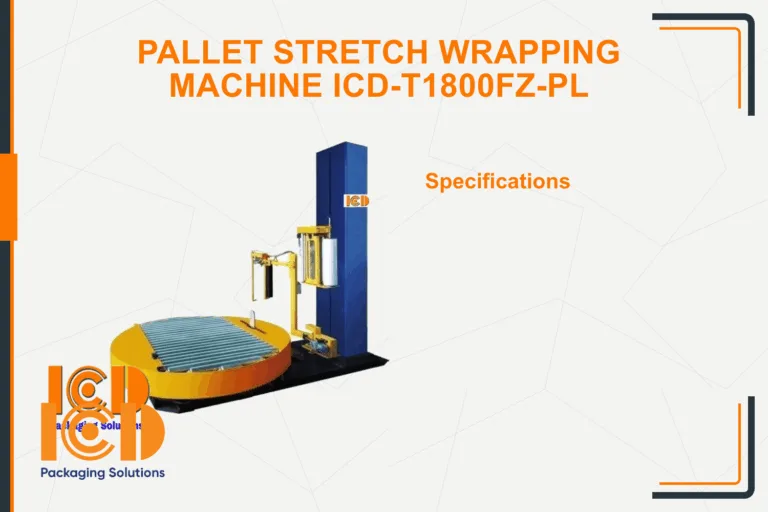

1. Product Specifications
| Specification | Details |
|---|---|
| Product code | ICD-T1800FZ-PL |
| Origin | Vietnam |
| Warranty | 2 years |
2. Applications & Key Advantages
- Continuous, high-volume pallet packing lines for export
- Electronics and plastic components manufacturing
- Food industry production lines
- Chemical industry handling
- Securing whole palletised loads moving along a conveyor
- Dust and moisture protection for wrapped goods
- Operations needing automatic product-height measurement
- Lines combining turntable wrapping with infeed and outfeed conveyors
Browse the full Stretch Wrapping Machines range from ICD Vietnam.
3. Product Images
4. Frequently Asked Questions
What is the ICD-T1800FZ designed for?
It is an automatic pallet wrapping machine integrated with a conveyor line, designed for industries with large, continuous pallet output such as electronics, plastic components, food and chemicals.
What load and capacity does it handle?
It carries pallet loads up to 1500 kg and packs at 20-40 pallets per hour, with a turntable speed of 3-12 rpm.
What are the turntable size and wrapping height?
The turntable is 1800 mm in diameter at 550 mm height, with a maximum wrapping height of 2000 mm.
What quality standards does it meet?
It meets EN ISO 12100:2010 and EN 60204-1:2006+AC:2010, and carries EC labelling.
How does the film pre-stretch help?
The film frame can pre-stretch up to 250%, reducing wrapping film consumption.
