The Robopac Masterplat Plus ICD-TP3 is a turntable pallet wrapping machine from Robopac for companies that need good wrapping performance, film savings and easy parameter setting. The pallet sits on a 1,650 mm turntable while the film carriage travels up and down to wrap the load.
1. Product Specifications
| Specification | Details |
|---|---|
| Brand | Robopac (Italy) |
| ICD product code | ICD-ROBOT-RBP-TP3 |
| Machine type | Turntable stretch wrapping machine, Masterplat Plus |
| Turntable diameter | 1,650 mm (1,800 mm optional) |
| Maximum load | 2,000 kg (2,500 kg optional) |
| Turntable speed | 5 - 12 rpm |
| Film carriage speed | 1.4 - 4 m/min |
| Maximum product size (L x W) | 1,000 x 1,200 mm (1,200 x 1,200 mm optional) |
| Maximum product height | 2,200 mm (2,400 / 2,800 / 3,100 mm optional) |
| Film carriage | FRD, FR or PGS (fixed 250% pre-stretch with the PGS carriage) |
| Control panel | 3.5 inch colour display with JOG selector |
| Power supply | 230 V, single phase, 50/60 Hz |
| Installed power | 1.5 kW (FRD, FR) / 1.9 kW (PGS) |
| Maximum film reel | 500 x 300 mm, 20 kg |
| Film thickness | 7 - 35 microns |
| Forklifting | Front and rear |
| Price | Contact for a quote |
| Warranty | 12 months |
Specifications follow the manufacturer technical page. The film carriage, turntable diameter and options of the delivered machine are confirmed in the quotation.
2. Applications & Key Features
- Turntable machine rated for loads up to 2,000 kg (2,500 kg optional)
- Loads up to 1,000 x 1,200 mm and 2,200 mm high (larger sizes optional)
- Fixed 250% pre-stretch with the PGS film carriage, so each pallet uses less film
- 3.5 inch colour display with JOG selector for quick wrapping cycle setup
- Manufacturer options: loading ramps, top presser, net film carriage, weighing kit and R-Connect monitoring
This is a turntable machine, not a self-propelled robot. For stationary pallets or loads above 2,500 kg, consider a rotary-arm wrapper or a wrapping robot. Browse the full Stretch Wrapping Machines range from ICD Vietnam.

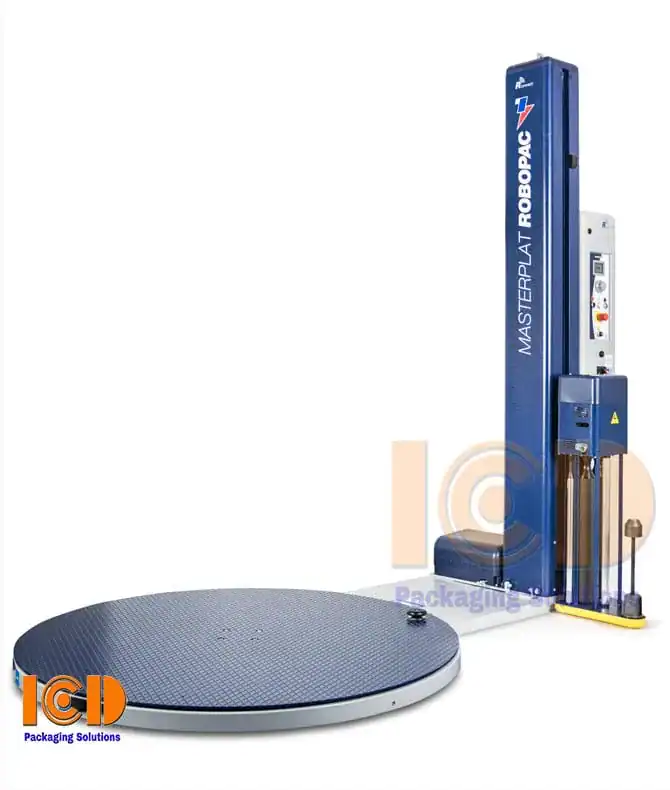

3. Product Images
4. Frequently Asked Questions
Is the Robopac Masterplat Plus ICD-TP3 a self-propelled wrapping robot?
No. According to Robopac, Masterplat Plus is a turntable stretch wrapping machine: the pallet rests on a rotating turntable and the film carriage moves up and down. Self-propelled wrapping robots are a different group of machines in the ICD Vietnam range.
How heavy a pallet can it wrap?
The maximum load is 2,000 kg in the standard configuration and 2,500 kg as an option. Maximum product size is 1,000 x 1,200 mm (1,200 x 1,200 mm optional) and maximum height is 2,200 mm (2,400, 2,800 or 3,100 mm optional).
What does 250% pre-stretch mean?
The PGS film carriage stretches the film before it reaches the load, so less film is used per pallet. On Masterplat Plus the standard PGS pre-stretch is fixed at 250%; the FRD and FR carriages have no pre-stretch.
What is the warranty period?
The machine carries a 12-month warranty under the ICD Vietnam warranty policy. Detailed scope and conditions are stated in the contract or quotation.
