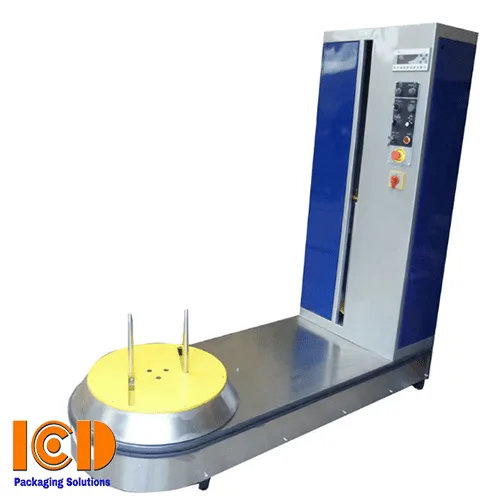

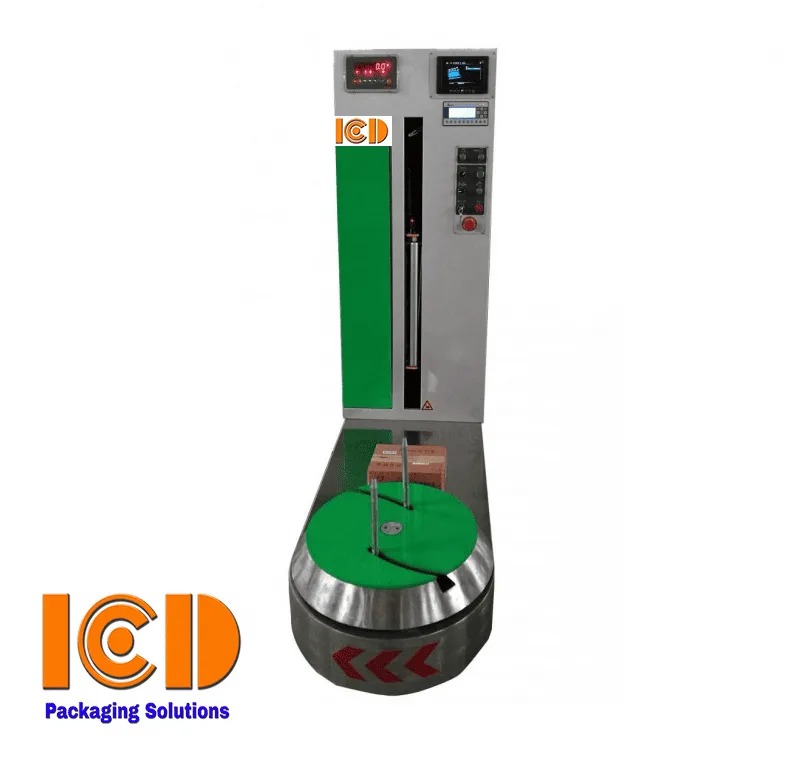

The ICD-LP600F-L is a fully automatic airport luggage wrapping machine built for high-intensity commercial use. It handles bags from 250-1200 mm long, 200-500 mm wide and 250-1000 mm high, up to 60 kg, at 15-25 bags per hour. Staff place the bag on the infeed, press a button, and the machine wraps and ejects it - no training required. Ideal for airports, hotels, shopping malls and bus terminals.
1. Product Specifications
| Specification | Details |
|---|---|
| Product code | ICD-LP600F-L |
| Origin | Vietnam |
| Warranty | 2 years |
2. Applications & Key Advantages
- Airports running continuous 16-18 hour daily operation with frequent staff shift changes
- Shopping malls and large terminals with high luggage throughput and ample floor space
- Hotels and commercial venues protecting guest luggage
- Bus terminals and transit points needing fast, consistent bag wrapping
- Wrapping all six sides of a case evenly via the conveyor-and-ring design
- Handling large 30-inch cases, since the 1000 mm maximum height accommodates them
- Operations needing easy maintenance, with quick PE film changes and roller cleaning by general staff
Browse the full Stretch Wrapping Machines range from ICD Vietnam.
3. Product Images
4. Frequently Asked Questions
What luggage sizes and weights can it handle?
It wraps bags from 250-1200 mm long, 200-500 mm wide and 250-1000 mm high, up to 60 kg. The 1000 mm maximum height is enough to wrap a 30-inch case, and the 500 mm width covers most travel cases.
How fast is it and how is it operated?
It wraps 15-25 bags per hour, taking about 60-90 seconds per bag. Staff place the bag on the infeed conveyor, press a button, and the machine wraps and ejects it automatically with no manual film tensioning.
How much PE film does each bag use?
On average 8-12 metres per bag depending on size and number of layers. With 2 standard layers, a 500 m roll wraps roughly 40-60 bags. Film width is 500 mm and 2-4 adjustable layers are available.
How long does it take to change the PE film?
Under 5 minutes. The machine uses a quick-release film shaft, so no screws or tools are needed.
How does it differ from the XT4508?
The LP600F-L uses a conveyor-and-ring design suited to wide spaces and high volume such as large airports, wrapping all six sides evenly. The XT4508 uses an automatic turntable for tighter spaces and mobile, multi-site service.
