Danpla 4 mm sheet is the ideal choice when 3 mm is not rigid enough. It offers about 30% more stiffness and load capacity than 3 mm for only about 33% more weight (around 1100-1200 g per sheet), making it a cost-effective option for larger boxes and medium-to-high loads in industrial production. Surface hardness is Shore D 75-80 for good scratch resistance.
1. Product Specifications
| Specification | Details |
|---|---|
| Product code | ESD-DANPLA-04 |
| Material | Virgin PP |
| Thickness | 4 mm |
| Origin | Vietnam |
| Warranty | 2 years |
2. Applications & Key Advantages
- Boxes carrying medium loads of about 8-15 kg without sagging or bowing under evenly distributed weight
- Larger boxes over 600 mm in length or width that need extra rigidity to avoid deformation
- Automotive parts and medium-weight electronic components
- Dividers that must withstand pressure from goods on both sides
- Boxes reused more than 20 times that need higher rigidity to resist wear
- General industrial applications beyond light electronics
- Standard size 1220 x 2440 mm, thickness 4 mm (plus/minus 0.2 mm), surface hardness Shore D 75-80
- Available in white, blue, black and black ESD, for use from -10 C to +60 C
- Supports about 300-350 kg static load distributed across the full sheet surface
Browse the full Corrugated Plastic (Danpla) range from ICD Vietnam.

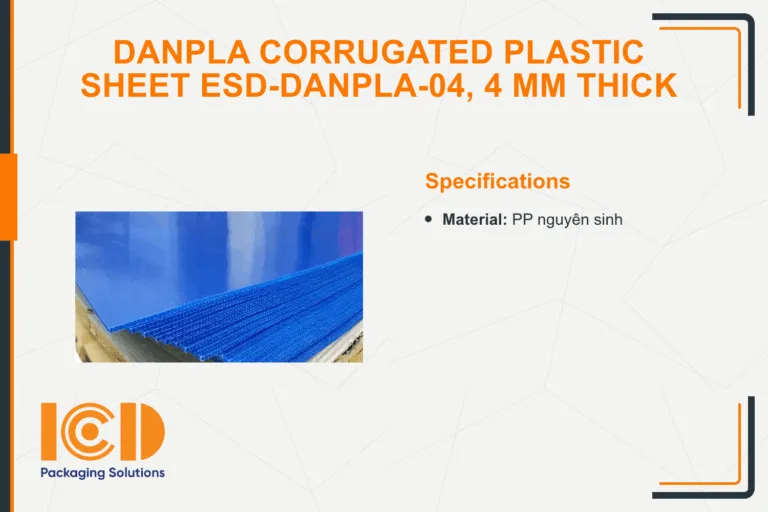

3. Product Images
4. Frequently Asked Questions
When should I choose 4 mm instead of 3 mm?
Choose 4 mm for loads of about 8-12 kg, boxes larger than roughly 50 x 40 cm, dividers under two-sided pressure, boxes reused more than 20 times, and general industrial use beyond light electronics.
How much stronger is 4 mm than 3 mm?
It is about 30% stiffer for only about 33% more weight (from around 900 g to 1100-1200 g per sheet), an attractive strength-to-cost ratio.
What loads can a 4 mm box carry?
A 4 mm box carries about 8-15 kg evenly distributed; for loads above 15 kg or pallet-lining and floor use, step up to 5 mm.
What is the static load capacity of the sheet?
A 4 mm sheet supports about 300-350 kg of static load when distributed across the full surface.
What colours and temperature range are available?
It comes in white, blue, black and black ESD, rated for use from -10 C to +60 C, with Shore D 75-80 surface hardness.
