The H1717R4-1A is a medium-to-large square 1700x1700x150 mm warehouse storage pallet. It carries a 6,000 kg static load, 1,500 kg dynamic load and a 1,500 kg racking load, the highest in the 1700 mm group, and is moulded in PPC/HDPE in grey or blue. The single-deck, steel-reinforced, cross-braced design supports 4-way motor forklift, 2-way low-lift jack and 2-way high-lift access.
1. Product Specifications
| Specification | Details |
|---|---|
| Product code | ICD-PL-171715-N |
| Dimensions (mm) | 1700 x 1700 x 150 |
| Dynamic load (kg) | 1500 |
| Static load (kg) | 6000 |
| Material | HDPE, PPC |
2. Applications & Key Advantages
- Large household-goods warehouses, crated machinery and electrical equipment, with the highest 1,500 kg racking load in the 1700 mm group placed directly on heavy selective rack beams
- Mixed-equipment warehouses needing 4-way motor forklift, 2-way low-lift jack and 2-way high-lift handling
- Square, evenly packed goods such as crated cabinets and large boxed washing machines
- Export use without ISPM-15 heat treatment or fumigation
- Long-term chilled and ambient storage
- Retail supply chains from distribution centres to final sales points needing high-lift picking
- 4-way symmetrical footprint that needs no orientation when placing goods
- Steel reinforcement that resists long-term sagging across the 1700 mm span in both floor and rack storage
- UV- and chemical-resistant, non-absorbent PPC/HDPE that can be pressure-washed
- 100% recyclable, with strict batch load testing and ICD buy-back of damaged pallets
Browse the full Warehouse Storage Pallets range from ICD Vietnam.

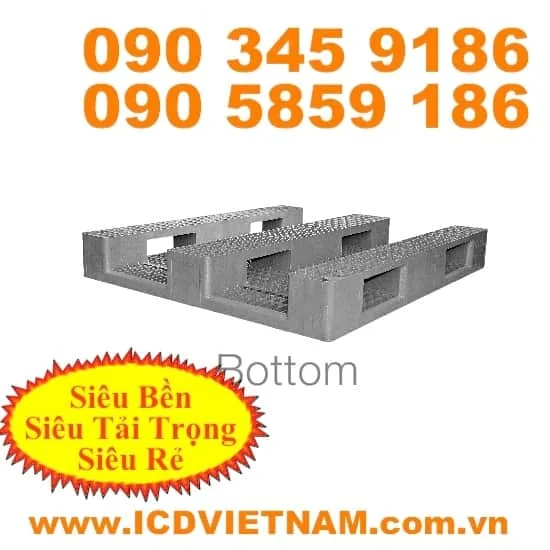

3. Product Images
4. Frequently Asked Questions
What are the dimensions and load ratings of the H1717R4-1A?
It measures 1700 x 1700 x 150 mm with a 6,000 kg static load, 1,500 kg dynamic load and 1,500 kg racking load.
What forklift equipment does it support?
It supports 4-way motor forklift entry, 2-way low-lift hand jack and 2-way high-lift jack access.
What material is it made from?
It is moulded in steel-reinforced PPC/HDPE, in grey or blue.
What is its service life?
It is rated for 5-10 years of continuous operation.
Does it need fumigation for export?
No. As a plastic pallet it does not require ISPM-15 heat treatment for export.
