The Warehouse Storage Pallet IPS EMV1212 VN RC measures 1200 x 1200 x 150 mm and is a single deck plastic pallet. It weighs 17 kg. It has a static load of 4,000 kg and a dynamic load of 1,500 kg.
1. Specifications of the Warehouse Storage Pallet IPS EMV1212 VN RC
| Specification | Details |
|---|---|
| Product code | IPS WMV1212 VN RC |
| Dimensions | 1200 x 1200 x 150 mm |
| Type | Single deck |
| Static load | 4,000 kg |
| Dynamic load | 1,500 kg |
| Racking load | Not published by ICD |
| Weight | 17 kg |
| Options | Logo and company-name printing |
2. How to Read the Load Ratings of This Pallet
Under ISO 8611, static load is the mass a pallet carries when it rests on a flat floor (4,000 kg for this code); dynamic load is the mass it carries while a forklift or hand pallet truck moves it, so the figure is lower (1,500 kg); ICD has not published a racking load for this code. The full definitions are on the ISO 8611-1 standard page. If the pallet will go on a racking, ask ICD before ordering rather than inferring a racking load from the static figure.
One pallet covers 1.44 m² of floor, so a layer of 100 pallets covers about 144 m².
Browse the full Warehouse Storage Pallets range from ICD Vietnam.
3. Comparison with Other 1200x1200 mm Pallets from ICD
The table lists ICD pallets with the same 1200x1200 mm footprint and the figures ICD has published. "Not published" means the product page has no figure.
| Product code | Height | Static load | Dynamic load | Weight |
|---|---|---|---|---|
| IPS WMV1212 VN RC (this page) | 150 mm | 4,000 kg | 1,500 kg | 17 kg |
| PL16-LK | 150 mm | 4,000 kg | 2,000 kg | 20.5 kg |
| EN4-1212 MS Plastics | 160 mm | 4,000 kg | 1,000 kg | 20.5 kg |

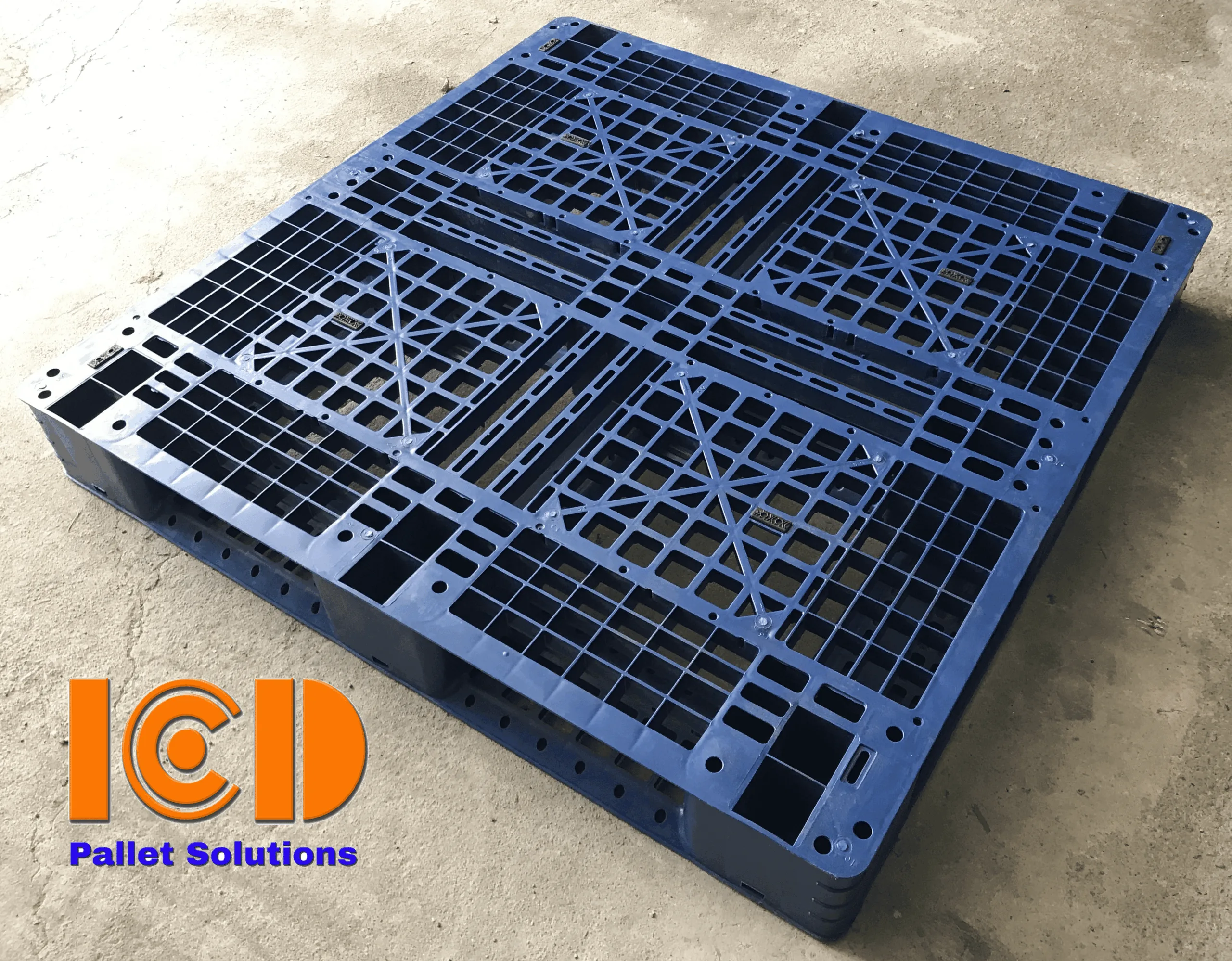

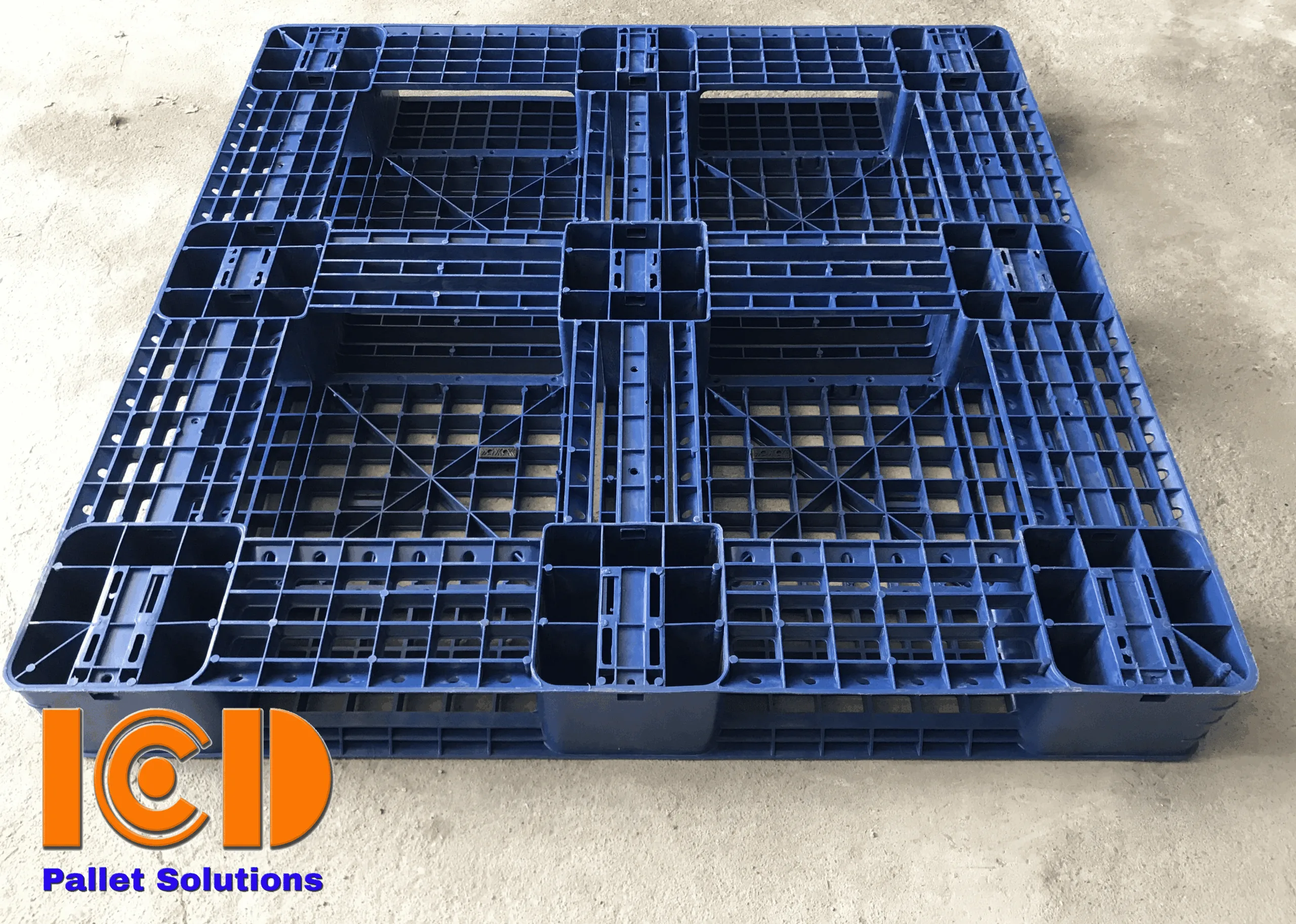

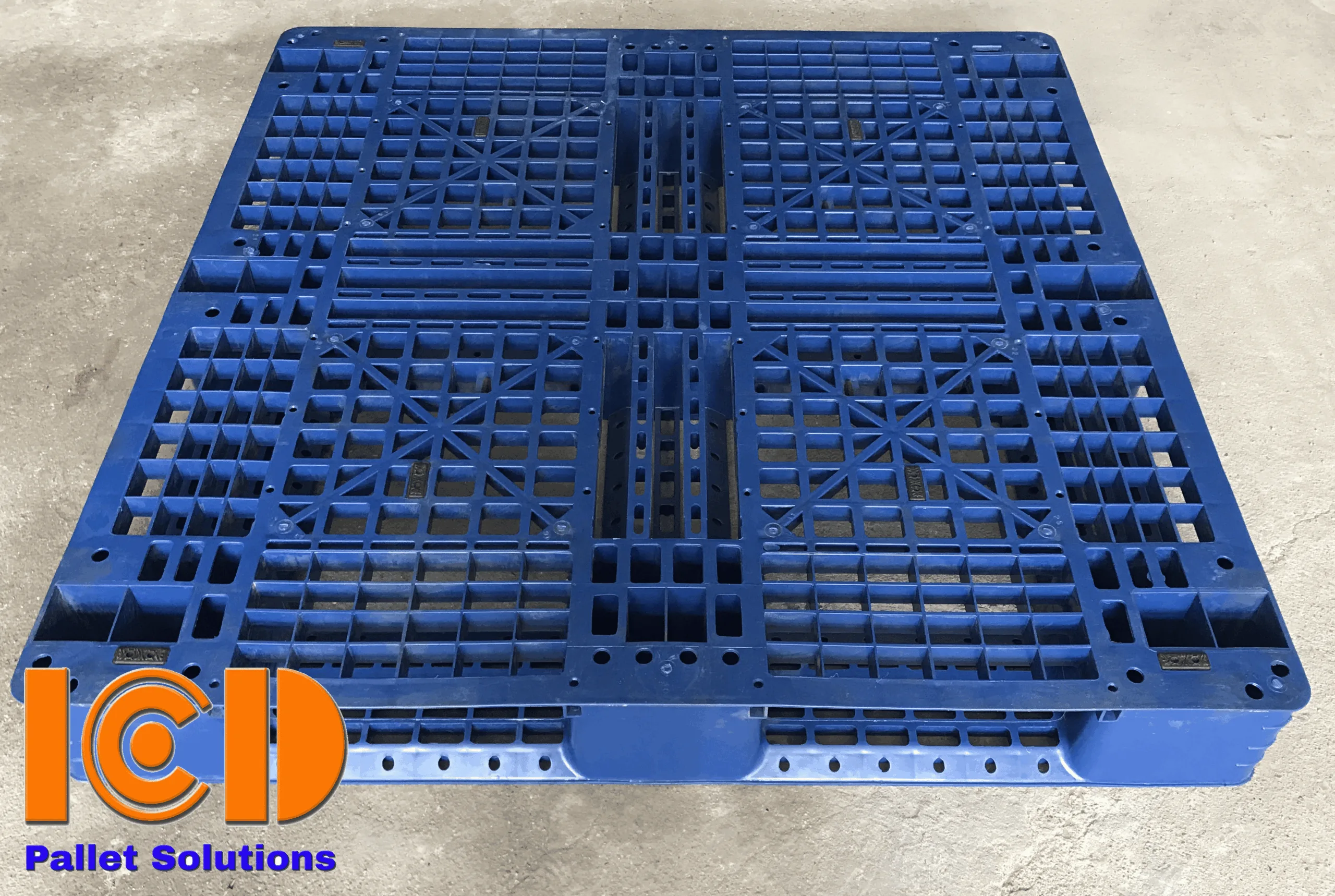

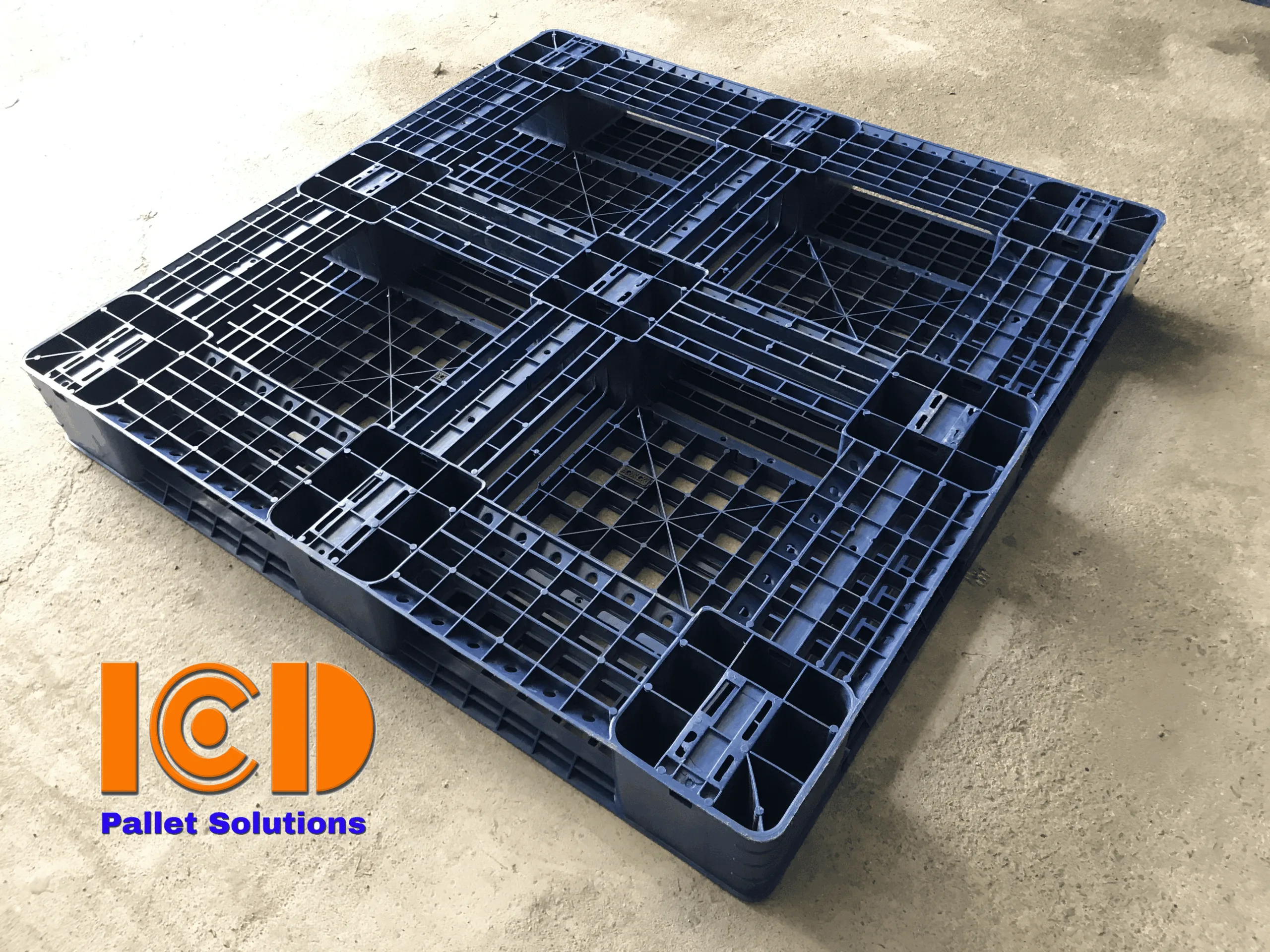

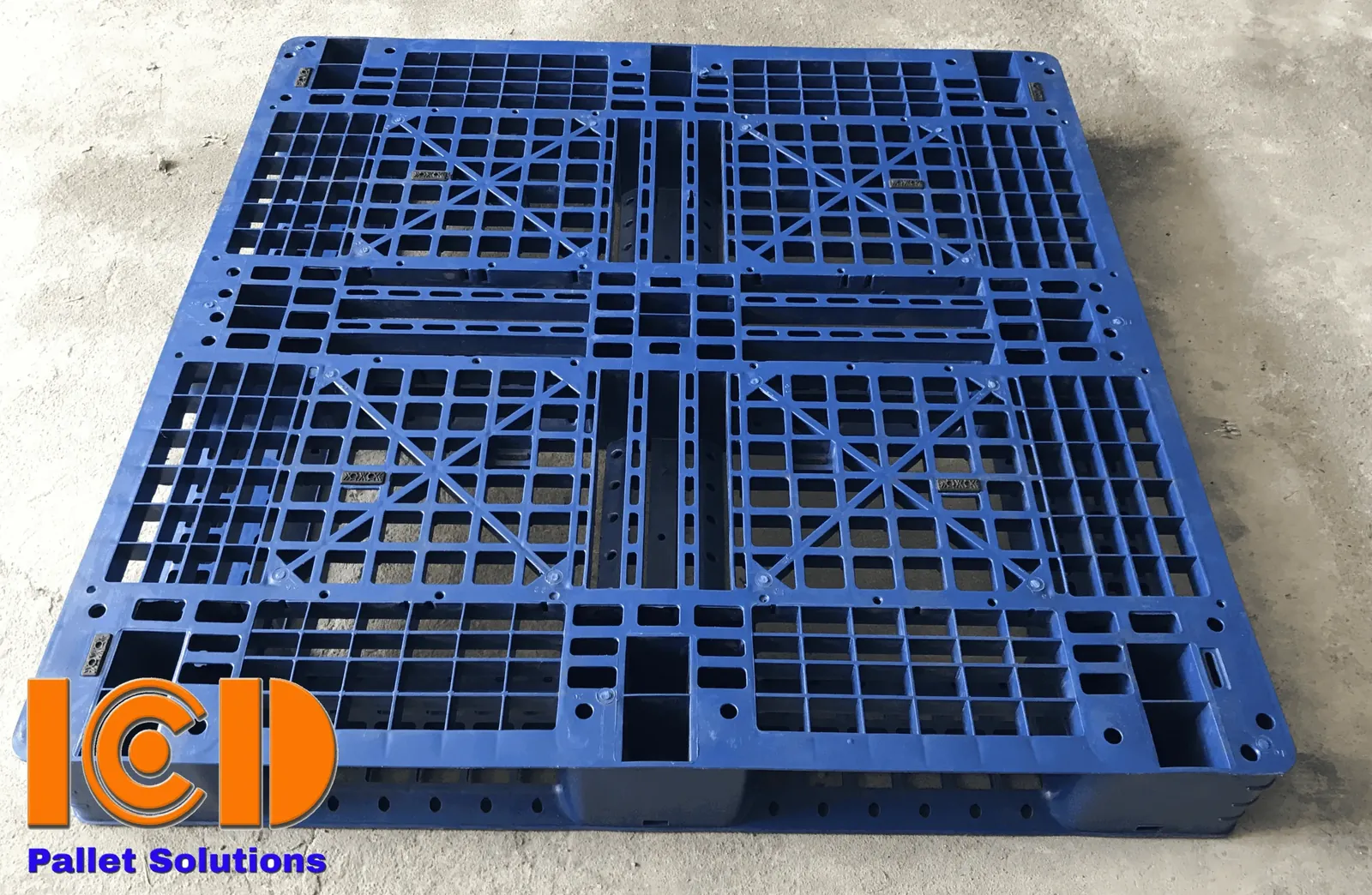

4. Product Images
5. Frequently Asked Questions
How many kg can the IPS WMV1212 VN RC carry?
ICD publishes a static load of 4,000 kg and a dynamic load of 1,500 kg. ICD has not published a racking load for this code, so ask ICD first if you plan to use a rack.
How much does the IPS WMV1212 VN RC weigh?
It weighs 17 kg according to the specification ICD publishes.
Can I order a specific color or print a logo?
logo and company-name printing is available as an option. Please contact ICD for the conditions.
