The Warehouse Storage Pallet N4-1111 MS Plastics measures 1100 x 1100 x 150 mm. Colors: blue. It weighs 17.5 kg. It has a static load of 4,000 kg and a dynamic load of 1,000 kg and a racking load of 1,000 kg. Material: PPC/HDPE.
1. Specifications of the Warehouse Storage Pallet N4-1111 MS Plastics
| Specification | Details |
|---|---|
| Product code | N4-1111 MS Plastics |
| Dimensions | 1100 x 1100 x 150 mm |
| Forklift | 4-way entry |
| Low hand pallet truck | 4-way entry |
| Static load | 4,000 kg |
| Dynamic load | 1,000 kg |
| Racking load | 1,000 kg |
| Weight | 17.5 kg |
| Material | PPC/HDPE |
| Color | Blue |
| Options | Logo and company-name printing |
2. How to Read the Load Ratings of This Pallet
Under ISO 8611, static load is the mass a pallet carries when it rests on a flat floor (4,000 kg for this code); dynamic load is the mass it carries while a forklift or hand pallet truck moves it, so the figure is lower (1,000 kg); racking load is the mass it carries on a rack, supported only at the ends (1,000 kg). The full definitions are on the ISO 8611-1 standard page. If the pallet will go on a racking, ask ICD before ordering rather than inferring a racking load from the static figure.
One pallet covers 1.21 m² of floor, so a layer of 100 pallets covers about 121 m².
Browse the full Warehouse Storage Pallets range from ICD Vietnam.
3. Comparison with Other 1100x1100 mm Pallets from ICD
The table lists ICD pallets with the same 1100x1100 mm footprint and the figures ICD has published. "Not published" means the product page has no figure.
| Product code | Height | Static load | Dynamic load | Weight |
|---|---|---|---|---|
| N4-1111 MS Plastics (this page) | 150 mm | 4,000 kg | 1,000 kg | 17.5 kg |
| EN4-1111 MS Plastics | 150 mm | 4,000 kg | 1,000 kg | 15.3 kg |
| M1111S4-2A | 150 mm | 4,000 kg | 1,000 kg | Not published |
| PL06-LK | 150 mm | 4,000 kg | 1,000 kg | 18.5 kg |
| PL09-LK | 150 mm | 3,000 kg | 1,000 kg | 11.5 kg |
| PL15-LK | 125 mm | 3,000 kg | 1,000 kg | 8.5 kg |

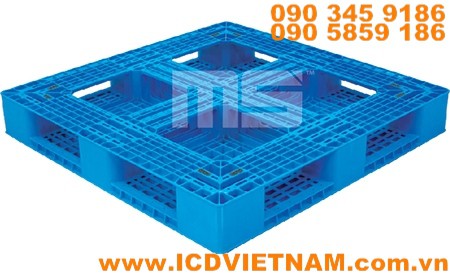

4. Product Images
5. Frequently Asked Questions
How many kg can the N4-1111 MS Plastics carry?
ICD publishes a static load of 4,000 kg and a dynamic load of 1,000 kg and a racking load of 1,000 kg.
What lifting equipment can be used?
As listed by ICD: a forklift with 4-way entry; a low hand pallet truck with 4-way entry.
How much does the N4-1111 MS Plastics weigh?
It weighs 17.5 kg according to the specification ICD publishes.
Can I order a specific color or print a logo?
ICD lists these colors for this code: blue; logo and company-name printing is available as an option. Please contact ICD for the conditions.
