The Warehouse Storage Pallet EN4-1311-2 MS Plastics measures 1300 x 1100 x 150 mm. Colors: blue. It weighs 20.5 kg. It has a static load of 4,000 kg and a dynamic load of 1,000 kg and a racking load of 1,000 kg.
1. Specifications of the Warehouse Storage Pallet EN4-1311-2 MS Plastics
| Specification | Details |
|---|---|
| Product code | EN4-1311-2 MS Plastics |
| Dimensions | 1300 x 1100 x 150 mm |
| Forklift | 4-way entry |
| Low hand pallet truck | 4-way entry |
| High hand pallet truck | 2-way entry |
| Static load | 4,000 kg |
| Dynamic load | 1,000 kg |
| Racking load | 1,000 kg |
| Weight | 20.5 kg |
| Color | Blue |
2. How to Read the Load Ratings of This Pallet
Under ISO 8611, static load is the mass a pallet carries when it rests on a flat floor (4,000 kg for this code); dynamic load is the mass it carries while a forklift or hand pallet truck moves it, so the figure is lower (1,000 kg); racking load is the mass it carries on a rack, supported only at the ends (1,000 kg). The full definitions are on the ISO 8611-1 standard page. If the pallet will go on a racking, ask ICD before ordering rather than inferring a racking load from the static figure.
One pallet covers 1.43 m² of floor, so a layer of 100 pallets covers about 143 m².
Browse the full Warehouse Storage Pallets range from ICD Vietnam.
3. Comparison with Other 1300x1100 mm Pallets from ICD
The table lists ICD pallets with the same 1300x1100 mm footprint and the figures ICD has published. "Not published" means the product page has no figure.
| Product code | Height | Static load | Dynamic load | Weight |
|---|---|---|---|---|
| EN4-1311-2 MS Plastics (this page) | 150 mm | 4,000 kg | 1,000 kg | 20.5 kg |
| Model 1300x1100x150 | 150 mm | 6,000 kg | 2,000 kg | 22 kg |
| Model 1300x1100x150 | 150 mm | 6,000 kg | 2,000 kg | Not published |
| ICD-EHV1113B2 | 150 mm | 4,000 kg | 1,000 kg | 19 kg |
| ICD-EHV1113B2 | 150 mm | 4,000 kg | 1,000 kg | 19 kg |
| ICD-EHV1113B2 | 150 mm | 4,000 kg | 1,000 kg | 19 kg |

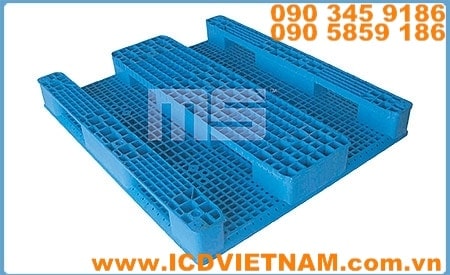

4. Product Images
5. Frequently Asked Questions
How many kg can the EN4-1311-2 MS Plastics carry?
ICD publishes a static load of 4,000 kg and a dynamic load of 1,000 kg and a racking load of 1,000 kg.
What lifting equipment can be used?
As listed by ICD: a forklift with 4-way entry; a low hand pallet truck with 4-way entry; a high hand pallet truck with 2-way entry.
How much does the EN4-1311-2 MS Plastics weigh?
It weighs 20.5 kg according to the specification ICD publishes.
Can I order a specific color or print a logo?
ICD lists these colors for this code: blue. Please contact ICD for the conditions.
