The ICD-PLK-151515-NX is a medium-large square pallet at 1500x1500x150 mm, carrying a 4,500 kg static load, a 1,500 kg dynamic load and a 1,000 kg racking load. It has a single-deck steel-reinforced structure for four-way machine forklifts in green HDPE, with the highest dynamic load in the 1500 mm group.
1. Product Specifications
| Specification | Details |
|---|---|
| Product code | ICD-PLK-151515-NX |
| Dimensions (mm) | 1500 x 1500 x 150 |
| Dynamic load (kg) | 1500 |
| Static load (kg) | 4500 |
| Material | HDPE |
| Color | Green |
2. Applications & Key Advantages
- The 1500x1500 mm square deck of 2.25 sqm suits large floor tiles, solar panels, architectural glass and non-oriented sheet construction materials.
- The 1,500 kg dynamic load - the highest in the 1500 mm group - supports medium-speed electric forklifts in continuous operation in cross-docking centres or multi-shift plants.
- The 1,000 kg racking load lets it sit directly on standard Selective rack beams without an extra steel support plate, and it pairs with Cantilever racking for sheet and panel goods.
- The distinctive green colour is easy to identify.
- HDPE resists cold and chemicals.
- Requires no ISPM-15 treatment for export and needs no scheduled maintenance.
- The 1,500 kg dynamic load is 50% higher than the H1512R4-1A (1,000 kg) in the same 1500 mm size group, suiting newer, heavier-fork electric forklifts.
- The four-way symmetric square deck needs no orientation when racking, reducing operating errors and pallet-turning in automated warehouses.
- Imported HDPE resists UV and chemicals and is free from rot; pressure-washable and 100% recyclable.
- Optional logo and company-name printing on request, with strict per-batch load testing.
- A service life of 5 to 10 years under normal operating conditions.
Browse the full Warehouse Storage Pallets range from ICD Vietnam.

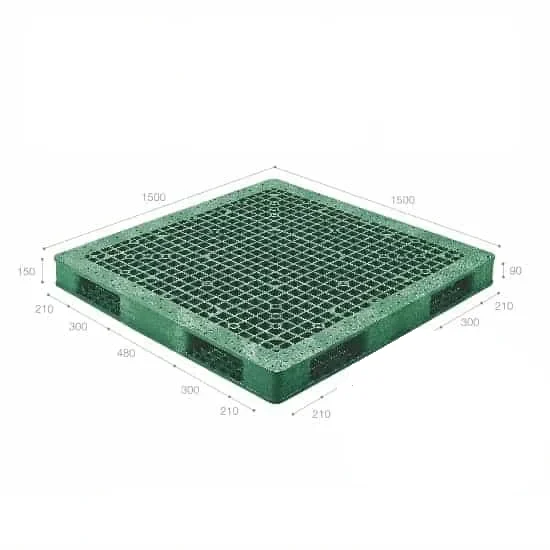

3. Product Images
4. Frequently Asked Questions
What are the load ratings of the ICD-PLK-151515-NX?
It carries a 4,500 kg static load, a 1,500 kg dynamic load and a 1,000 kg racking load.
What is the deck size?
1500x1500 mm square, giving a 2.25 sqm deck.
What is special about its dynamic load?
Its 1,500 kg dynamic load is the highest in the 1500 mm group, 50% higher than the H1512R4-1A.
Can it go directly on racking?
Yes. The 1,000 kg racking load lets it sit directly on standard Selective rack beams without an extra steel support plate.
What service life can be expected?
Around 5 to 10 years under normal operating conditions.
