The Warehouse Storage Pallet ICD-PLK-141215-NX measures 1400 x 1200 x 150 mm. Colors: grey, blue. It has a static load of 6,000 kg and a dynamic load of 1,500 kg. Material: PPC/HDPE.
1. Specifications of the Warehouse Storage Pallet ICD-PLK-141215-NX
| Specification | Details |
|---|---|
| Product code | H1412R4-1A |
| Dimensions | 1400 x 1200 x 150 mm |
| Forklift | 4-way entry |
| Static load | 6,000 kg |
| Dynamic load | 1,500 kg |
| Racking load | Not published by ICD |
| Weight | Not published by ICD |
| Material | PPC/HDPE |
| Color | Grey, Blue |
| Options | Logo and company-name printing |
2. How to Read the Load Ratings of This Pallet
Under ISO 8611, static load is the mass a pallet carries when it rests on a flat floor (6,000 kg for this code); dynamic load is the mass it carries while a forklift or hand pallet truck moves it, so the figure is lower (1,500 kg); ICD has not published a racking load for this code. The full definitions are on the ISO 8611-1 standard page. If the pallet will go on a racking, ask ICD before ordering rather than inferring a racking load from the static figure.
One pallet covers 1.68 m² of floor, so a layer of 100 pallets covers about 168 m².
Browse the full Warehouse Storage Pallets range from ICD Vietnam.
3. Comparison with Other 1400x1200 mm Pallets from ICD
The table lists ICD pallets with the same 1400x1200 mm footprint and the figures ICD has published. "Not published" means the product page has no figure.
| Product code | Height | Static load | Dynamic load | Weight |
|---|---|---|---|---|
| H1412R4-1A (this page) | 150 mm | 6,000 kg | 1,500 kg | Not published |
| Model 1400x1200x150 | 150 mm | 6,000 kg | 2,000 kg | 26 kg |
| ICD-EHV1214B2 | 150 mm | 4,000 kg | 1,200 kg | 22 kg |
| ICD-EHV1214B2 | 150 mm | 4,000 kg | 1,200 kg | 22 kg |
| ICD-PL141215-3R | 150 mm | 4,000 kg | 1,500 kg | 22 kg |

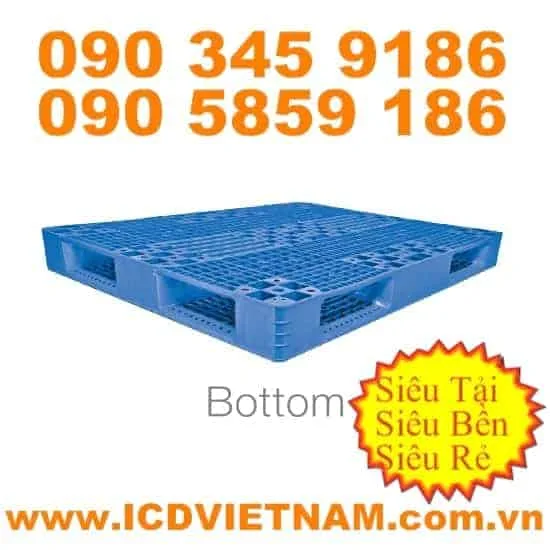

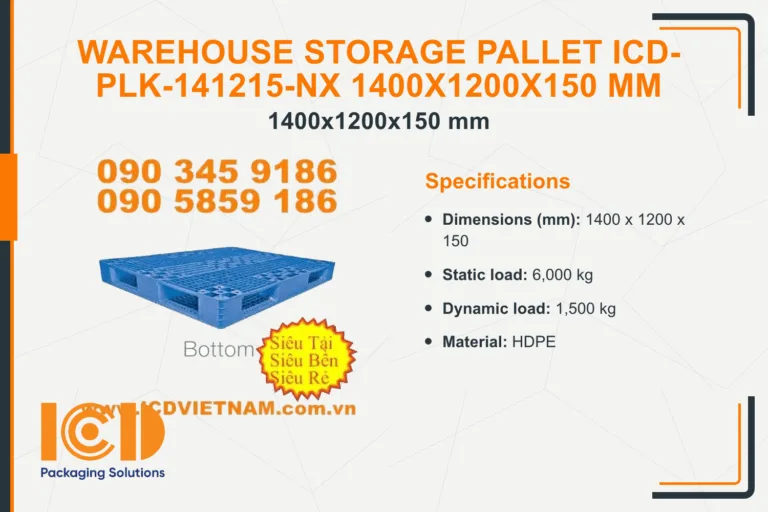

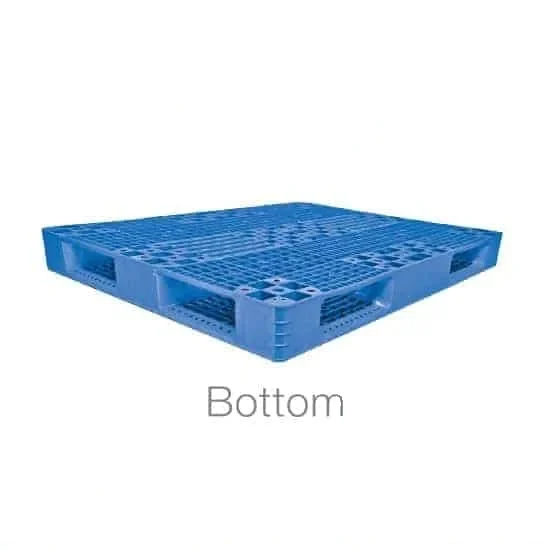

4. Product Images
5. Frequently Asked Questions
How many kg can the H1412R4-1A carry?
ICD publishes a static load of 6,000 kg and a dynamic load of 1,500 kg. ICD has not published a racking load for this code, so ask ICD first if you plan to use a rack.
What lifting equipment can be used?
As listed by ICD: a forklift with 4-way entry.
Can I order a specific color or print a logo?
ICD lists these colors for this code: grey, blue; logo and company-name printing is available as an option. Please contact ICD for the conditions.
