The ICD-PN2-120100150-D (DMV1012B2) is a reversible two-sided plastic pallet in the standard 1200x1000x150 mm size, with a static load of 4,000 kg and a dynamic (lift) load of 1,500 kg. It weighs 17.5 kg and is made from recycled HDPE in blue to ISO 9001:2008. Three deck variants are available: VC (two solid decks), RC (one solid, one mesh) and RB (two mesh decks).
1. Product Specifications
| Specification | Details |
|---|---|
| Product code | ICD-PN2-120100150-D |
| Dimensions (mm) | 1200 x 1000 x 150 |
| Dynamic load (kg) | 1500 |
| Static load (kg) | 4000 |
| Material | HDPE |
| Color | Blue |
2. Applications & Key Advantages
- A standard 1200x1000 mm load pallet usable on both faces, doubling service life over a single-sided pallet when one deck wears or is damaged
- Three deck variants (VC/RC/RB) let you match the goods: solid decks (VC) for small boxed items, mesh decks (RB) for goods needing drainage and ventilation in cold storage
- Suited to automotive and motorcycle parts plants, electronics, seafood and processed-food factories
- Compatible with Japanese and Korean 1200x1000 mm racking standards
- Recycled HDPE lowers initial investment versus virgin HDPE while still carrying the 4,000 kg static load
- Integrated anti-slip studs secure smooth loads such as component reels and resin bags during electric-forklift handling
- UV and chemical resistant, washable with a pressure hose, and 100% recyclable
- Plastic construction needs no ISPM-15 fumigation for export
Browse the full Warehouse Storage Pallets range from ICD Vietnam.

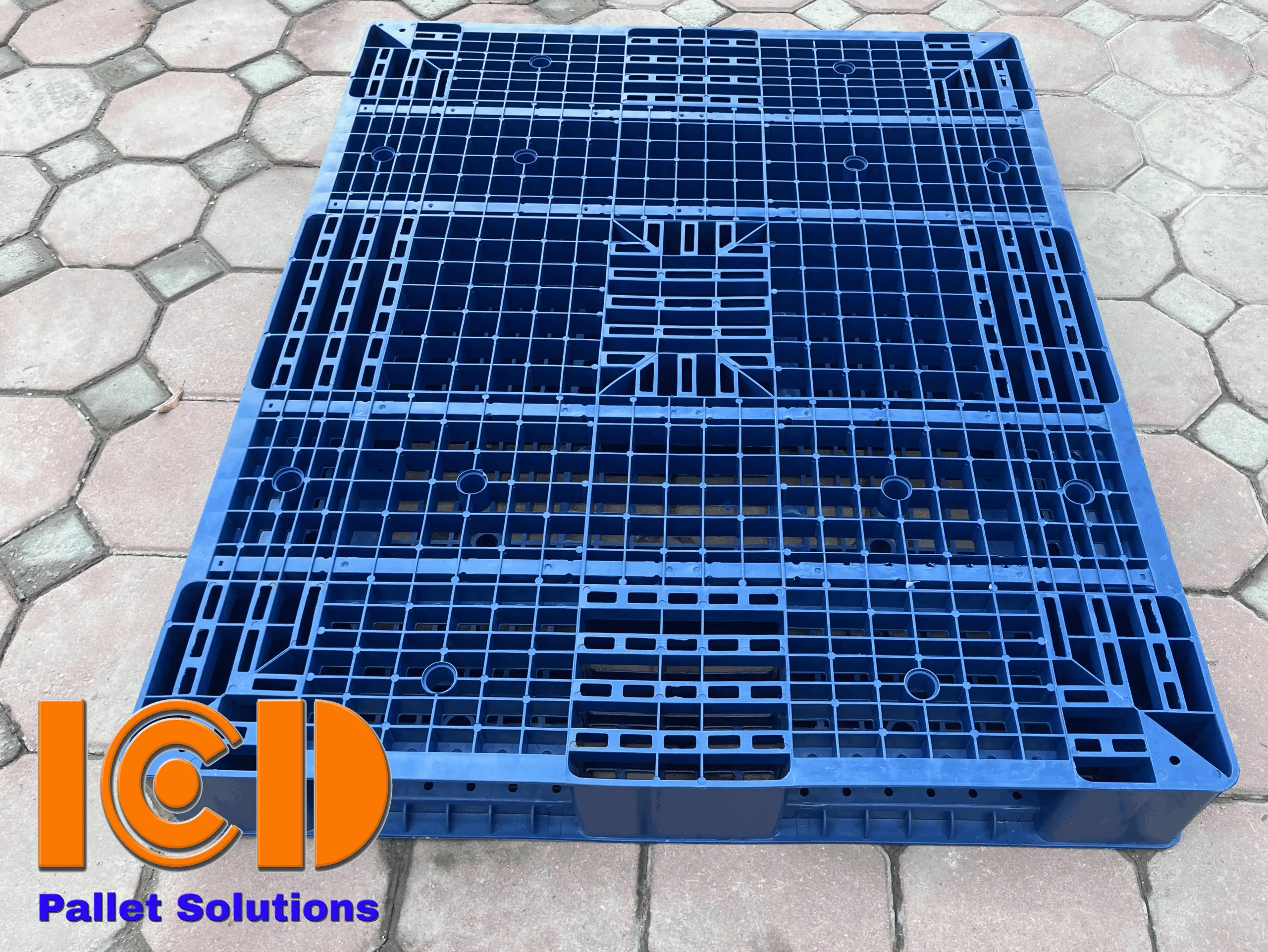

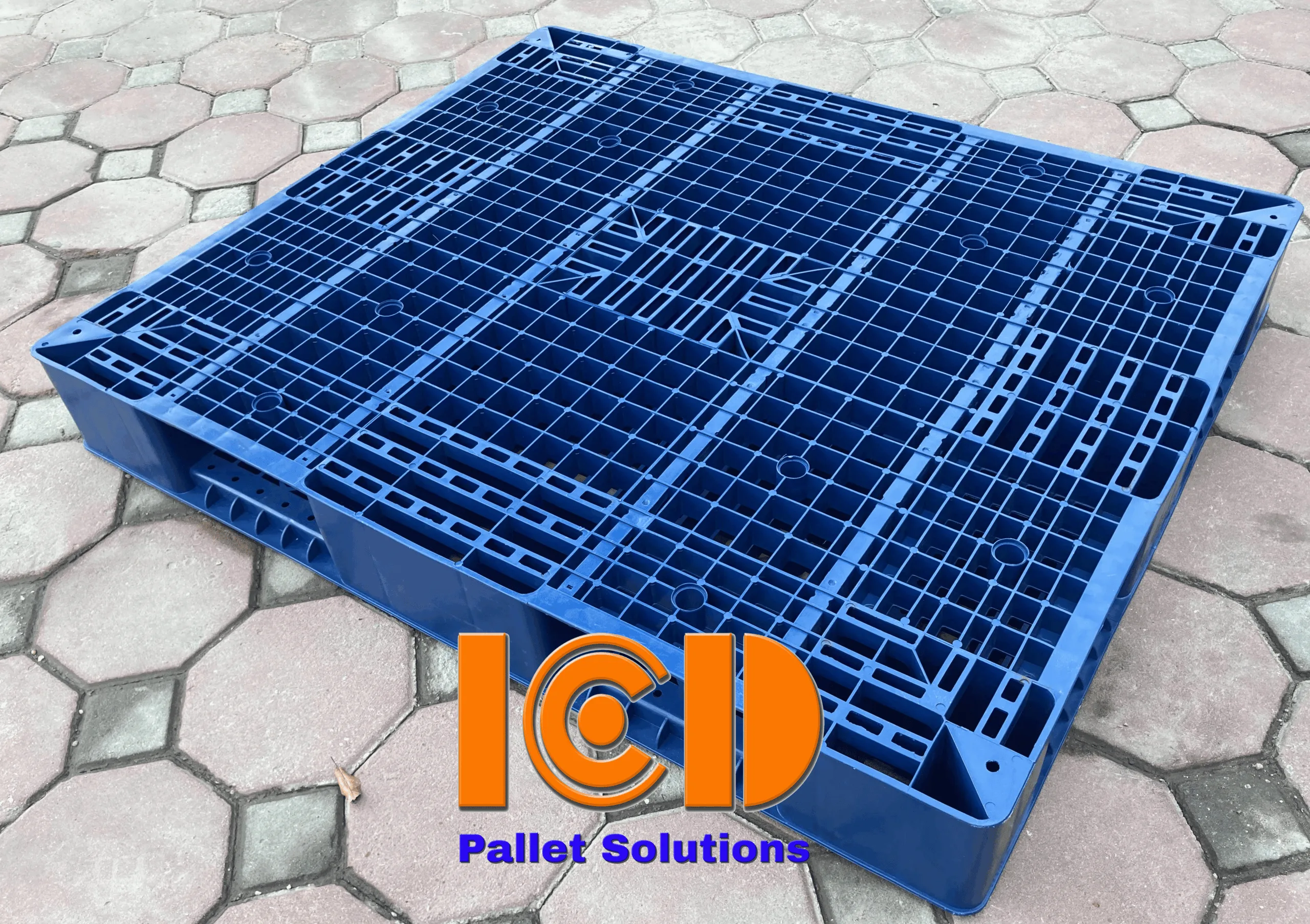

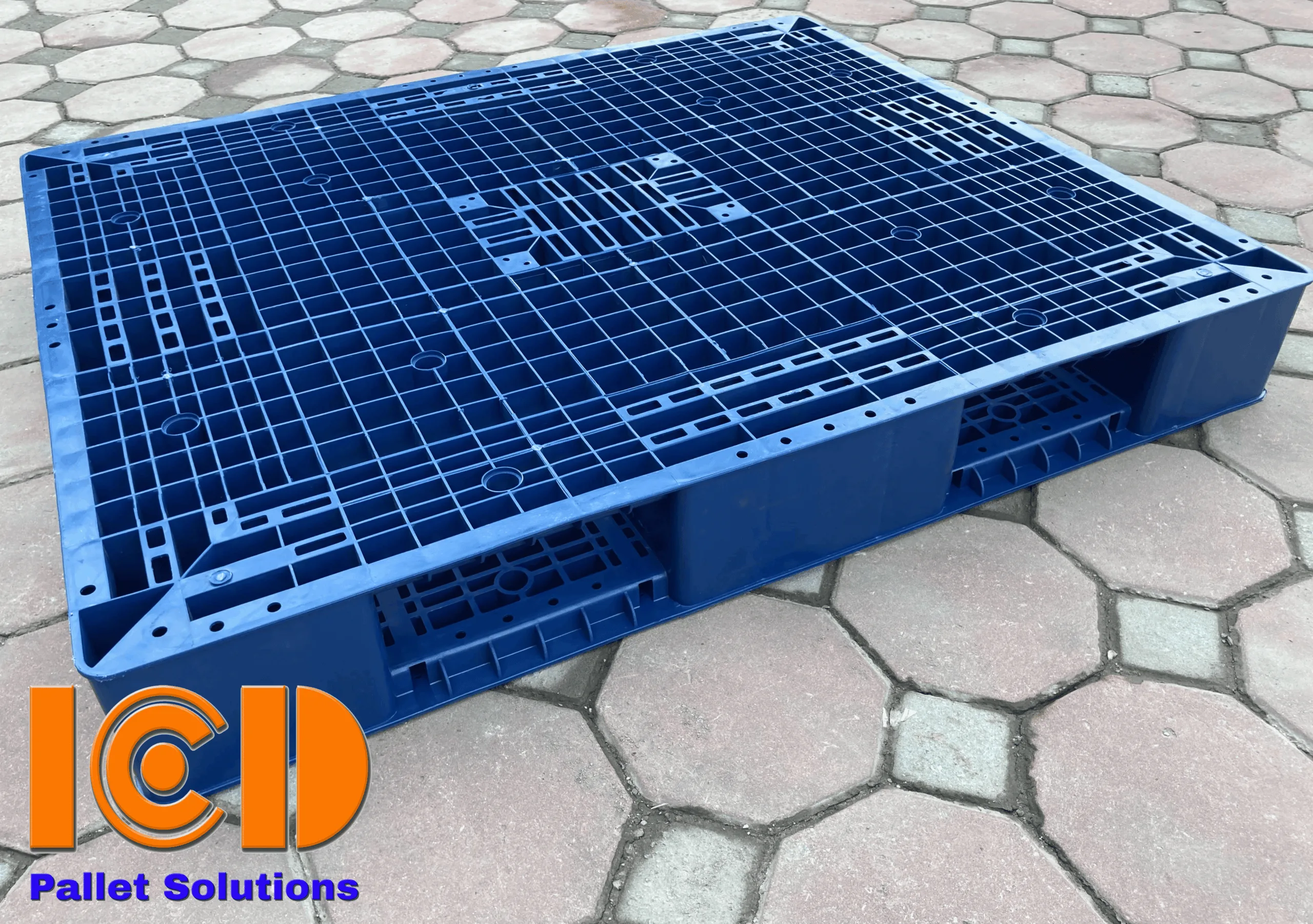

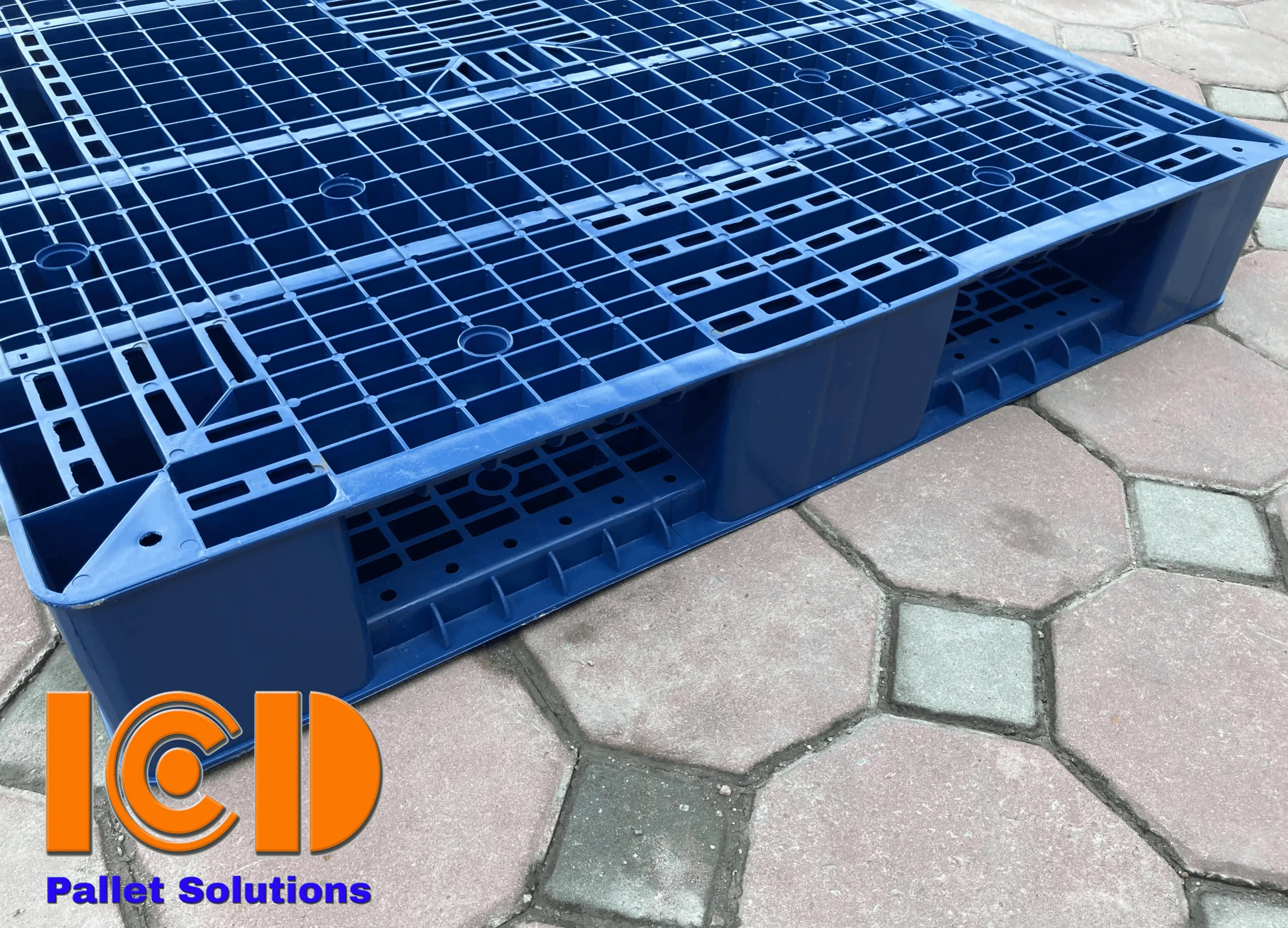

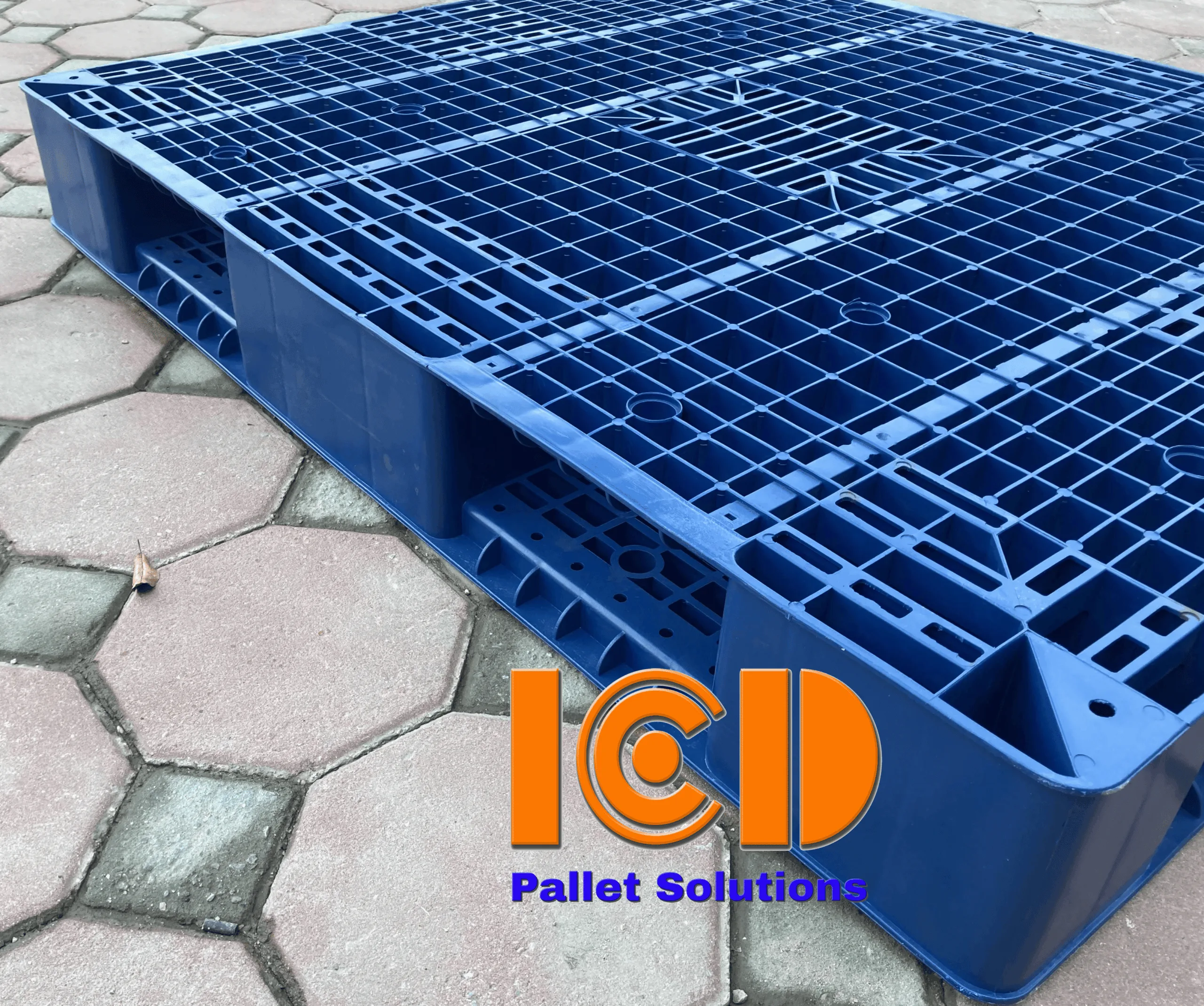

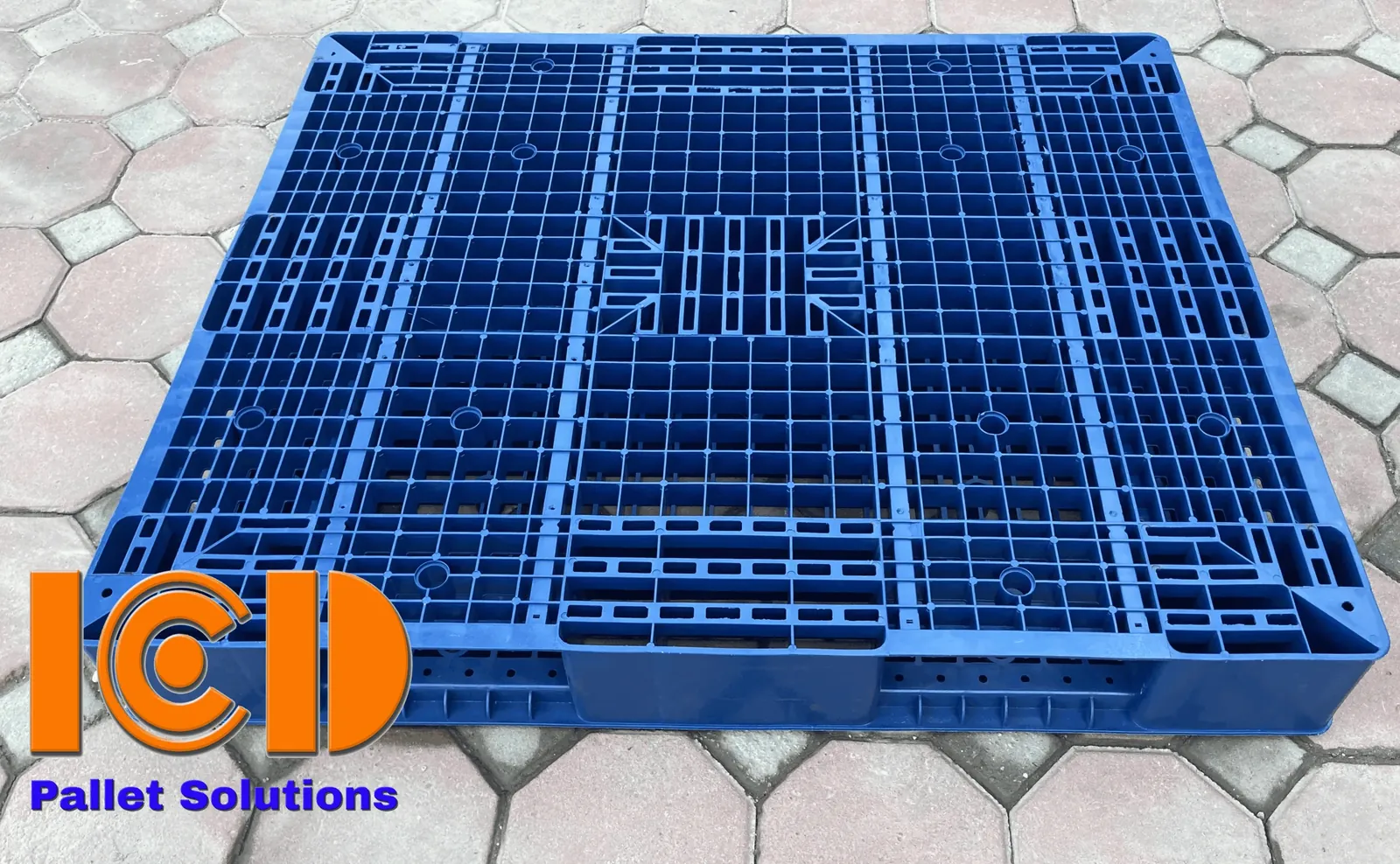

3. Product Images
4. Frequently Asked Questions
What does reversible (two-sided) mean for this pallet?
Both faces can be used independently. If the top deck becomes slippery or damaged, you flip the pallet and use the other face, with no change to the total static load.
What load can the DMV1012B2 carry?
It carries a 4,000 kg static load and a 1,500 kg dynamic lift load.
What surface variants are available?
Three: VC (two solid decks), RC (one solid and one mesh deck) and RB (two mesh decks).
Is it suitable for cold storage and food contact?
Yes. It resists UV and chemicals, is washable, non-toxic for basic food safety, and suits chilled and cold storage.
Does the pallet require fumigation for export?
No. As a plastic pallet it is exempt from ISPM-15 fumigation.
