The PL08-LK cold-storage plastic pallet, 1200x1000x145 mm, is a single-deck pallet with transverse runners, moulded from virgin HDPE and weighing 10.8 kg. It has a static load of 3,000 kg and a dynamic load of 1,500 kg, higher than the 1,000 kg of several same-size codes in the ICD range. The 145 mm height is 5 mm lower than the common 150 mm pallet, which suits cold-room and chilled racks whose bays are already close to the limit.
1. Specifications of the PL08-LK Cold-Storage Plastic Pallet
| Specification | Details |
|---|---|
| Product code | PL08-LK |
| Dimensions | 1200 x 1000 x 145 mm |
| Type | Single deck, transverse runners |
| Hand pallet truck | 4-way entry |
| Forklift | 4-way entry |
| Static load | 3,000 kg |
| Dynamic load | 1,500 kg |
| Racking load | Not published by ICD |
| Weight | 10.8 ± 0.5 kg |
| Material | Virgin HDPE |
| Anti-slip | 16 anti-slip points on top, 4 on the underside |
| Colors | Blue, red, yellow, black, grey |
| Options | Logo and company-name printing |
2. Choosing a Cold-Storage Pallet: Read Three Specifications Before the Price
For cold storage, load is only one of three figures to read. The second is the working temperature range the manufacturer states in writing, because a published load rating often does not say what temperature it was tested at. The third is the leg type and height, which decide whether the pallet fits the rack bay and works with the type of forklift you use.
For the PL08-LK, ICD publishes the load, leg type and height shown in the table above. ICD has not published a working temperature range on this page, so if your store is a deep-freeze room, tell ICD the real operating temperature and the goods so it can be confirmed before you order a large quantity. For chilled rooms, the 1,500 kg dynamic load is the point to note: it is clearly higher than the same-size codes with a 1,000 kg dynamic load in the comparison table below.
3. Use in Cold Rooms and Chilled Stores
At 10.8 kg the pallet is easy for staff to handle by hand, including in heavy protective clothing inside a cold room. Among the 1200x1000 warehouse pallets in the table below, it is the lightest. For stores running electric forklifts continuously, the 1,500 kg dynamic load gives more margin than the codes rated 1,000 kg.
The top deck has 16 anti-slip points that hold crates and trays in place while moving, and 4 anti-slip points on the underside keep the pallet from sliding on the floor. The pallet can be washed with water, which suits areas that need frequent cleaning, and it can be recycled at end of life.
Browse the full Warehouse Storage Pallets range from ICD Vietnam.
4. Comparing ICD 1200x1000 Warehouse Pallets
| Product code | Height | Static load | Dynamic load | Weight | Color |
|---|---|---|---|---|---|
| PL08-LK (this page) | 145 mm | 3,000 kg | 1,500 kg | 10.8 kg | 5 colors |
| PL08-3 | 145 mm | 2,000 kg | 1,000 kg | 11.5 kg | Black |
| PL04-LK | 150 mm | 4,000 kg | 1,000 kg | 17 kg | Red |
| PL18-LK | 150 mm | 5,000 kg | 1,500 kg | 21 kg | Blue |
| PL10-LK (steel core) | 150 mm | 5,000 kg | 2,400 kg | 18.6 kg | Blue |
If you need a higher static load for stacking heavy goods, PL04-LK, PL18-LK and PL10-LK in the table above have static loads from 4,000 to 5,000 kg, at a considerably higher weight than the 10.8 kg of the PL08-LK.
Note: ICD also supplies a different build under the same PL08-LK designation, a double-deck mesh pallet weighing 11.3 kg with a 2,500 kg static load and a 1,500 kg dynamic load, in blue (see the double-deck mesh PL08-LK pallet, Vietnamese page). The two builds differ in structure, so their figures differ; this page covers the single-deck, transverse-runner version with a 3,000 kg static load.

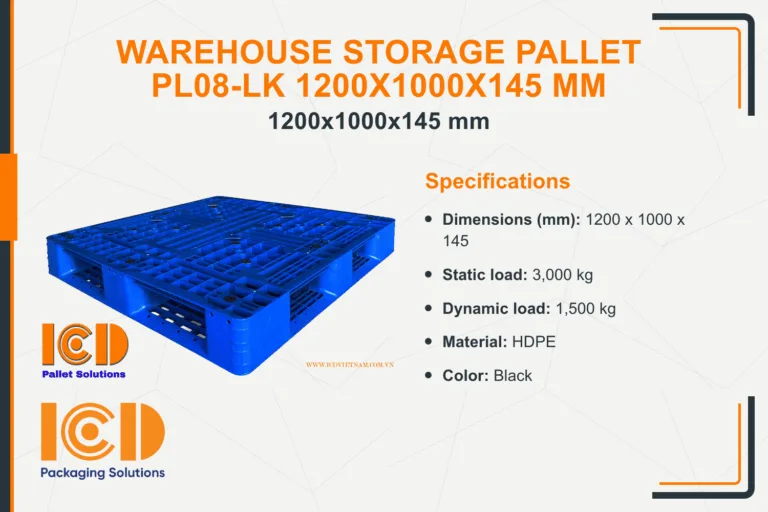

5. Product Images
6. Frequently Asked Questions
Can the PL08-LK be used in a deep-freeze room?
ICD has not published a working temperature range for this code on the page. Tell ICD the room temperature and the goods so it can advise before you order a large quantity.
How does the 1,500 kg dynamic load differ from the 3,000 kg static load?
Static load is what the pallet carries when it rests on a flat floor. Dynamic load is what it carries while being moved by a forklift or hand pallet truck, so the figure is lower.
Can I order other colors and print a logo?
The pallet comes in 5 colors: blue, red, yellow, black and grey. Logo and company-name printing are options, so please contact ICD for the conditions.
